Small drill chuck A201M A201M.0.50.092.13Small drill chuck A201M A201M.0.50.092.13
Small drill chuck A201M A201M.0.50.092.13 Small drill chuck A201M A201M.0.50.092.13

Small drill chuck A201M A201M.0.50.092.13

€
766.00
EX VAT
€
942.18
INC VAT
Walter
Small drill chuck A201M A201M.0.50.092.13
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

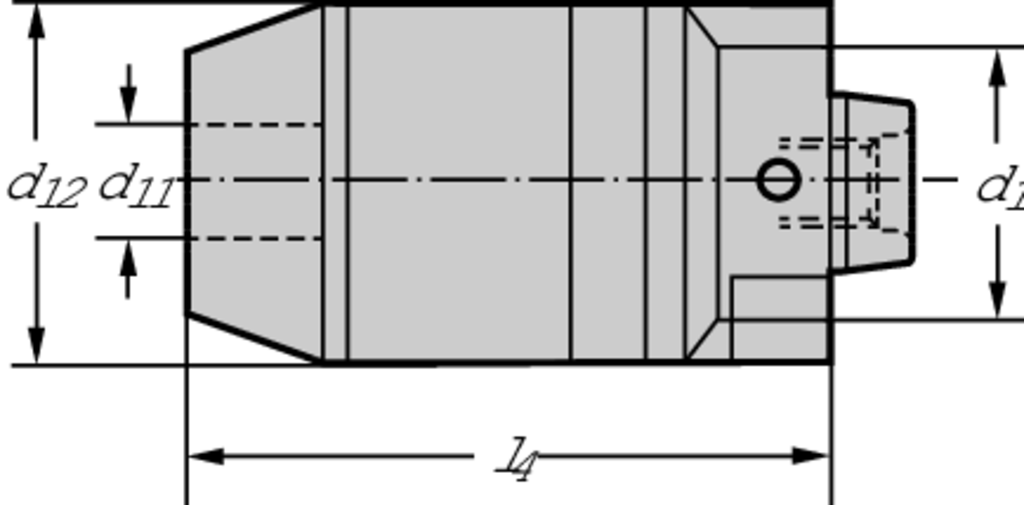

Tool designation (Designation) A201M.0.50.092.13
Connection size code (d 1) NCT 50
Connection diameter (d 11) 1 - 13 mm
Body diameter (d 12) 36,5 mm
Functional length (l 4) 92 mm
weight of item 1,18 kg
Insert Shape A2
DESCRIPTION & FEATURES
Small drill chuck A201M • metric • With clamping mechanism backup • d1=50 • d11=1 - 13
Article number (J21):
A201M.0.50.092.13
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
36,5 mm
Body diameter 2 (A2):
50 mm
Flange diameter (A4):
50 mm
Body length 1 (B1):
25 mm
Length 2 (B2):
92 mm
Protruding length (B3):
92 mm
Overall length (B4):
104 mm
Functional length (B71):
92 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0500
Connection diameter machine side (C3):
50 mm
Shank length (C4):
12 mm
Connection code type workpiece side (C51):
ZYL
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
0
Connection code style workpiece side (C55):
6
Connection size code workpiece side (C6):
0010
Connection diameter min (C71):
1 mm
Connection diameter max (C72):
13 mm
Rotational speed maximum (D6):
30000 1/min
Weight of item (D7):
1,177 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Data chip provision (J7):
0
