10mm Solid carbide ball nose copy milling cutters H8004028-10

10mm Solid carbide ball nose copy milling cutters H8004028-10

€

161.70

EX VAT

€

198.89

INC VAT

Walter Prototyp

Solid carbide ball nose copy milling cutters H8004028 • Protostar ULTRA • DIN 6535 HA shank • TAX • metric • flute helix angle 30° • Dc=10mm • R=5mm • Z=2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

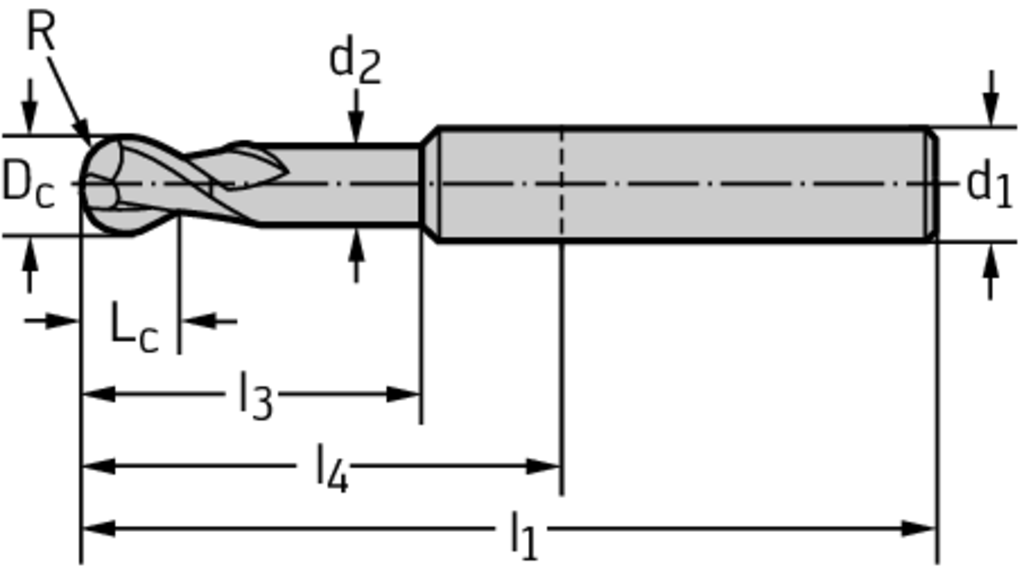

PRODUCT ATTRIBUTES

Tool designation (Designation) H8004028-10

Cutting edge diameter (D c) 10 mm

Corner radius (r) 5 mm

Cutting edge length (L c) 10 mm

Useable length (l 3) 35 mm

Neck diameter (d 2) 9,5 mm

Overall length (l 1) 83 mm

Functional length (l 4) 38 mm

Connection size code (d 1) 12 mm

Number of teeth (Z) 2

Insert Shape H8

DESCRIPTION & FEATURES

Solid carbide ball nose copy milling cutters H8004028 • Protostar ULTRA • DIN 6535 HA shank • TAX • metric • flute helix angle 30° • Dc=10mm • R=5mm • Z=2

Article number (J21):

H8004028-10

Ball nose:

Yes

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

10 mm

Neck diameter (A5):

9,5 mm

Depth of cut maximum (B2):

10 mm

Protruding length (B3):

38 mm

Overall length (B5):

83 mm

Functional length (B71):

83 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0120

Connection diameter machine side (C3):

12 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

45 mm

Rotational speed maximum (D6):

153967 1/min

Weight of item (D7):

0,119 kg
