Solid carbide chamfer milling cutter 90° AH3058318-3/8

Solid carbide chamfer milling cutter 90° AH3058318-3/8

€

76.30

EX VAT

€

93.85

INC VAT

Walter Prototyp

Solid carbide chamfer milling cutter 90° AH3058318-3/8

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

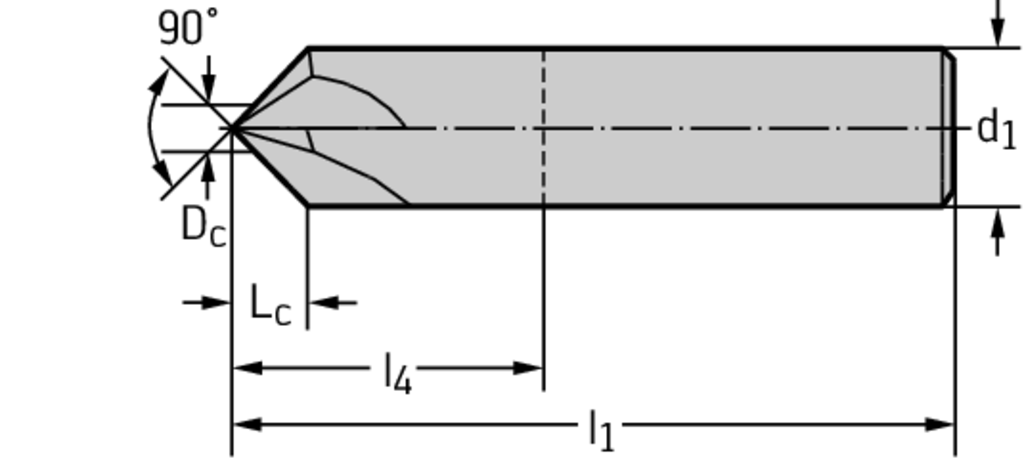

Tool designation (Designation) AH3058318-3/8

Cutting edge diameter (D c) 1.5 mm

Cutting edge length (L c) 4,01 mm

Overall length (l 1) 63,5 mm

Maximum projection length (l 4) 23 mm

Connection diameter (d 1) 9,525 mm

Number of teeth (Z) 4

Insert Shape AH

DESCRIPTION & FEATURES

Solid carbide chamfer milling cutter 90° AH3058318 • Protostar • inch • Parallel shank • Dc=1,5mm • Z=4

Article number (J21):

AH3058318-3/8

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

1,5 mm

Cutting diameter maximum (A2):

9,525 mm

Depth of cut maximum (B2):

4,013 mm

Protruding length (B3):

23 mm

Overall length (B5):

63,5 mm

Functional length (B71):

62,7 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0375

Connection diameter machine side (C3):

9,525 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

70 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,067 kg

Tool cutting edge angle (E1):

45 °

Rake angle radial (E2):

1 °

Rake angle axial (E3):

0 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TAX

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

STANDARD

Data chip provision (J7):

Solid carbide chamfer milling cutter 90° AH3058318-3/8
