6mm Solid carbide Circle Segment Cutter MD839-06A4P10100-WJ30RA

6mm Solid carbide Circle Segment Cutter MD839-06A4P10100-WJ30RA

€

79.36

EX VAT

€

97.61

INC VAT

Walter Prototyp

Solid carbide Circle Segment Cutter MD839 • Supreme • DIN 6535 HA shank • WJ30RA • metric • flute helix angle 30° • Dc=2mm • R=1mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

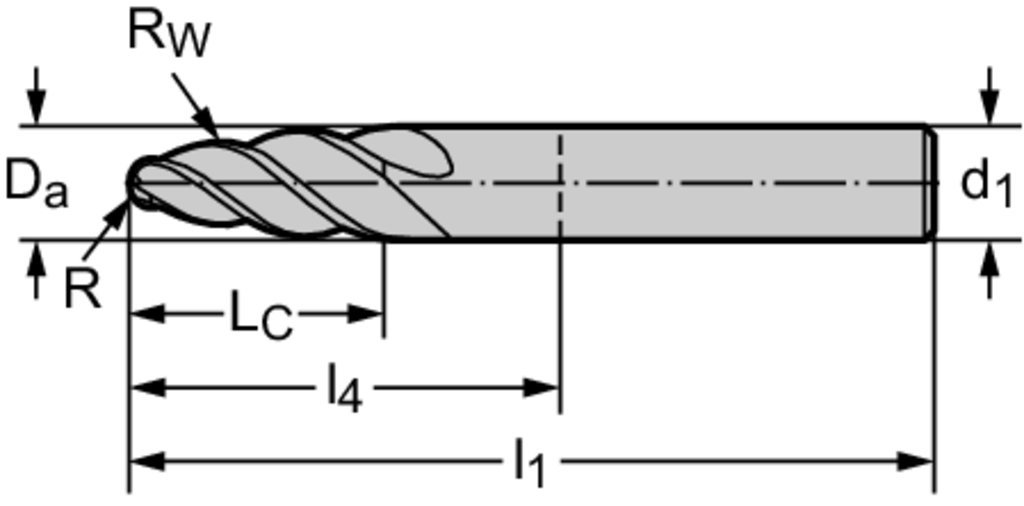

Tool designation (Designation) MD839-06A4P10100-WJ30RA

Maximum cutting diameter (D a) 6 mm

Corner radius (r) 1 mm

Effective radius (R w) 100 mm

Cutting edge length (L c) 20,8 mm

Overall length (l 1) 65 mm

Shank diameter (d 1) 6 mm

Number of teeth (Z) 4

Insert Shape MD

DESCRIPTION & FEATURES

Solid carbide Circle Segment Cutter MD839 • Supreme • DIN 6535 HA shank • WJ30RA • metric • flute helix angle 30° • Dc=2mm • R=1mm • Z=4

Article number (J21):

MD839-06A4P10100-WJ30RA

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

2 mm

Cutting diameter maximum (A2):

6 mm

Depth of cut maximum (B2):

20,8 mm

Protruding length (B3):

27 mm

Overall length (B5):

65 mm

Functional length (B71):

65 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,024 kg
