Solid carbide countersinkers A3367-17/64IN

Solid carbide countersinkers A3367-17/64IN

€

99.00

EX VAT

€

121.77

INC VAT

Walter Titex

Solid carbide countersinkers A3367-17/64IN

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

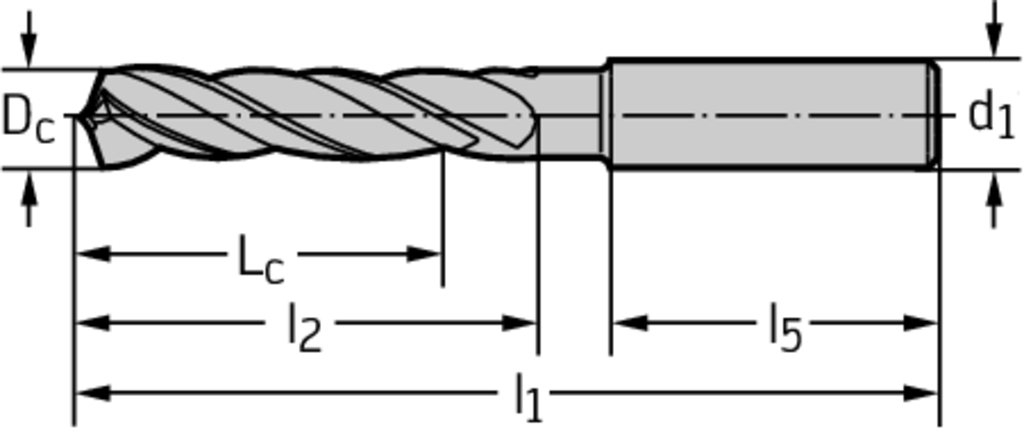

Tool designation (Designation) A3367-17/64IN

Cutting edge diameter (D c) 6.747 mm

Cutting edge diameter (D c) 17/64" Inch_No_Let

Cutting edge length (L c) 43 mm

Overall length (l 1) 91 mm

Projection length (l 2) 53 mm

Shank length (l 5) 36 mm

Shank diameter (d 1) 8 mm

Insert Shape A3

DESCRIPTION & FEATURES

Solid carbide countersinkers A3367 • DIN 6537 L • 5xD • DIN 6535 HA shank • point angle 130° • Dc=6,747mm

Article number (J21):

A3367-17/64IN

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

6,747 mm

Protruding length (B3):

55,003 mm

Usable length (B4):

43 mm

Overall length (B5):

91 mm

Length chip flute (B6):

53 mm

Point length (B7):

1,573 mm

Functional length (B71):

89,43 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,042 kg

Point angle 1st step (E1):

130 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Standard (J1):

DIN 6537 L

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Without Through Coolant
