Solid carbide drills with coolant-through A6489DPP-1/2IN

Solid carbide drills with coolant-through A6489DPP-1/2IN

€

574.00

EX VAT

€

706.02

INC VAT

Walter Titex

Solid carbide drills with coolant-through A6489DPP-1/2IN

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

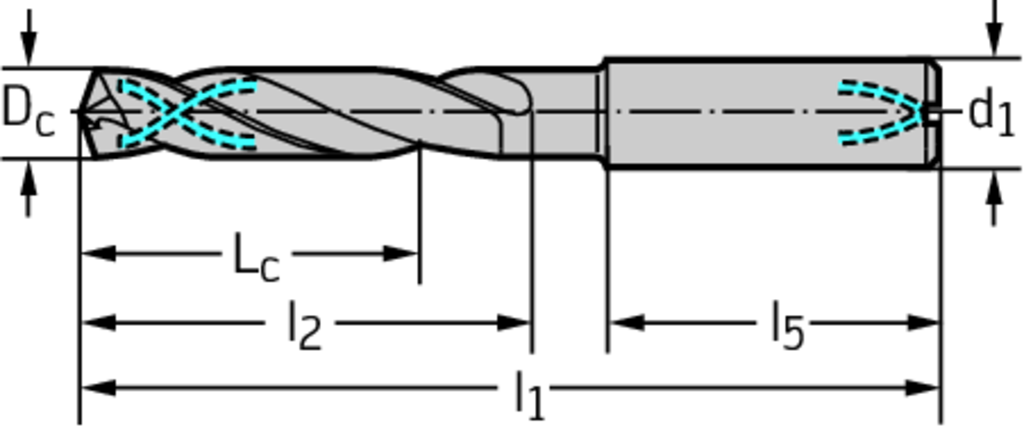

Tool designation (Designation) A6489DPP-1/2IN

Cutting edge diameter (D c) 12.7 mm

Cutting edge diameter (D c) 1/2" Inch_No_Let

Cutting edge length (L c) 119 mm

Overall length (l 1) 182 mm

Projection length (l 2) 133 mm

Shank length (l 5) 45 mm

Shank diameter (d 1) 14 mm

Insert Shape A6

DESCRIPTION & FEATURES

Solid carbide drills with coolant-through A6489DPP • Xtreme D8 • 8xD • DIN 6535 HA shank • point angle 140° • Dc=12,7mm

Article number (J21):

A6489DPP-1/2IN

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

12,7 mm

Protruding length (B3):

137,001 mm

Usable length (B4):

119 mm

Overall length (B5):

182 mm

Length chip flute (B6):

133 mm

Point length (B7):

2,311 mm

Functional length (B71):

179,69 mm

Neck length (B9):

119

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0140

Connection diameter machine side (C3):

14 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

45 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,26 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

DPP

Body material code (H4):

Coating (H5):

TiAlN (AlCrN)-Kopfbe

Standard (J1):

TP-NORM 64

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Through Coolant
