Solid carbide drills with coolant-through DC260-03-05.000F1-WJ30ET

Solid carbide drills with coolant-through DC260-03-05.000F1-WJ30ET

€

117.00

EX VAT

€

143.91

INC VAT

Walter Titex

Solid carbide drills with coolant-through DC260-03-05.000F1-WJ30ET

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

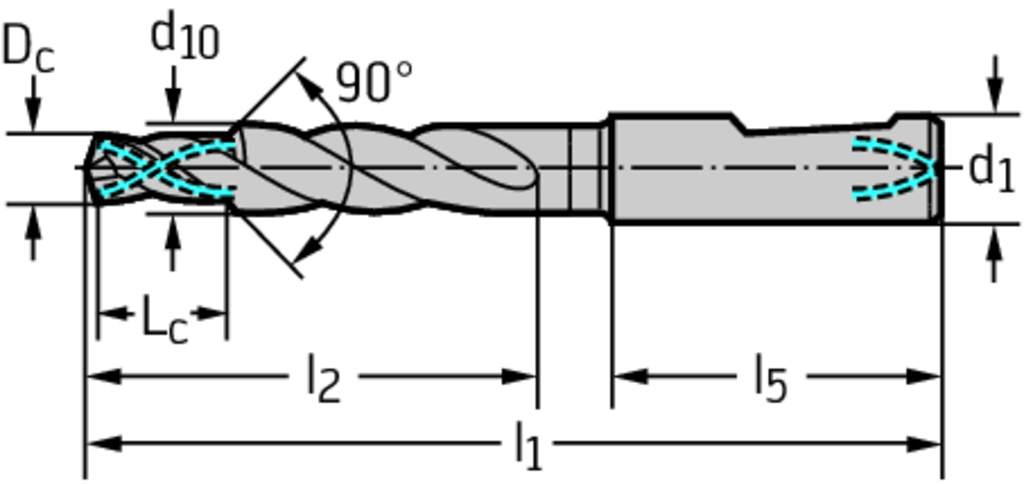

Tool designation (Designation) DC260-03-05.000F1-WJ30ET

For threads M 6

Cutting edge diameter (D c) 5 mm

Cutting edge diameter (d 10) 8 mm

Cutting edge length (L c) 16,5 mm

Overall length (l 1) 79 mm

Projection length (l 2) 41 mm

shank length (l 5) 36 mm

Connection diameter (d 1) 8 mm

Insert Shape DC

DESCRIPTION & FEATURES

Solid carbide drills with coolant-through DC260 • Advance • Xtreme Evo • 3xD • DIN 6535 HE shank • Dc=8mm

Article number (J21):

DC260-03-05.000F1-WJ30ET

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-81

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

5 mm

Cutting diameter last step minimum (A21):

8 mm

Step count (A3):

Step diameter length (B1):

16,5 mm

Protruding length (B3):

43 mm

Usable length (B4):

18,9 mm

Overall length (B5):

79 mm

Length chip flute (B6):

41 mm

Point length (B7):

0,91 mm

Functional length (B71):

78,09 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,038 kg

Point angle 1st step (E1):

140 °

Step included angle last step (E2):

90 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30ET

Body material code (H4):

Coating (H5):

TiSiAlCrN/AlTiN

Standard (J1):

TP-NORM 65

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Through Coolant
