Solid carbide drills with coolant-through DC170-08-03.175A1-WJ30EJ

Solid carbide drills with coolant-through DC170-08-03.175A1-WJ30EJ

€

216.00

EX VAT

€

265.68

INC VAT

Walter Titex

Solid carbide drills with coolant-through DC170-08-03.175A1-WJ30EJ

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

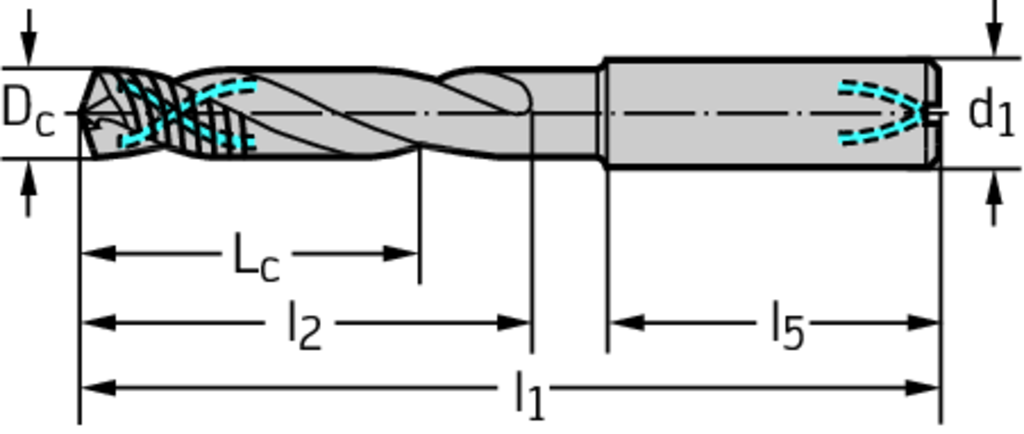

Tool designation (Designation) DC170-08-03.175A1-WJ30EJ

Cutting edge diameter (D c) 3.175 mm

Cutting edge diameter (D c) 1/8" Inch_No_Let

Cutting edge length (L c) 28 mm

Overall length (l 1) 74 mm

Projection length (l 2) 34 mm

Shank length (l 5) 36 mm

Shank diameter (d 1) 6 mm

Insert Shape DC

DESCRIPTION & FEATURES

Solid carbide drills with coolant-through DC170 • Supreme • 8xD • DIN 6535 HA shank • point angle 140° • Dc=3,175mm

Article number (J21):

DC170-08-03.175A1-WJ30EJ

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

3,175 mm

Protruding length (B3):

38 mm

Usable length (B4):

28 mm

Overall length (B5):

74 mm

Length chip flute (B6):

34 mm

Point length (B7):

0,578 mm

Functional length (B71):

73,422 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,027 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30EJ

Body material code (H4):

Coating (H5):

TiAlN (AlCrN)

Standard (J1):

TP-NORM 64

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Through Coolant
