Solid carbide high feed milling cutters MC025 MC025.15.9A4D203-WJ30TF

Solid carbide high feed milling cutters MC025 MC025.15.9A4D203-WJ30TF

€

192.75

EX VAT

€

237.08

INC VAT

Walter Prototyp

Solid carbide high feed milling cutters MC025 MC025.15.9A4D203-WJ30TF

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

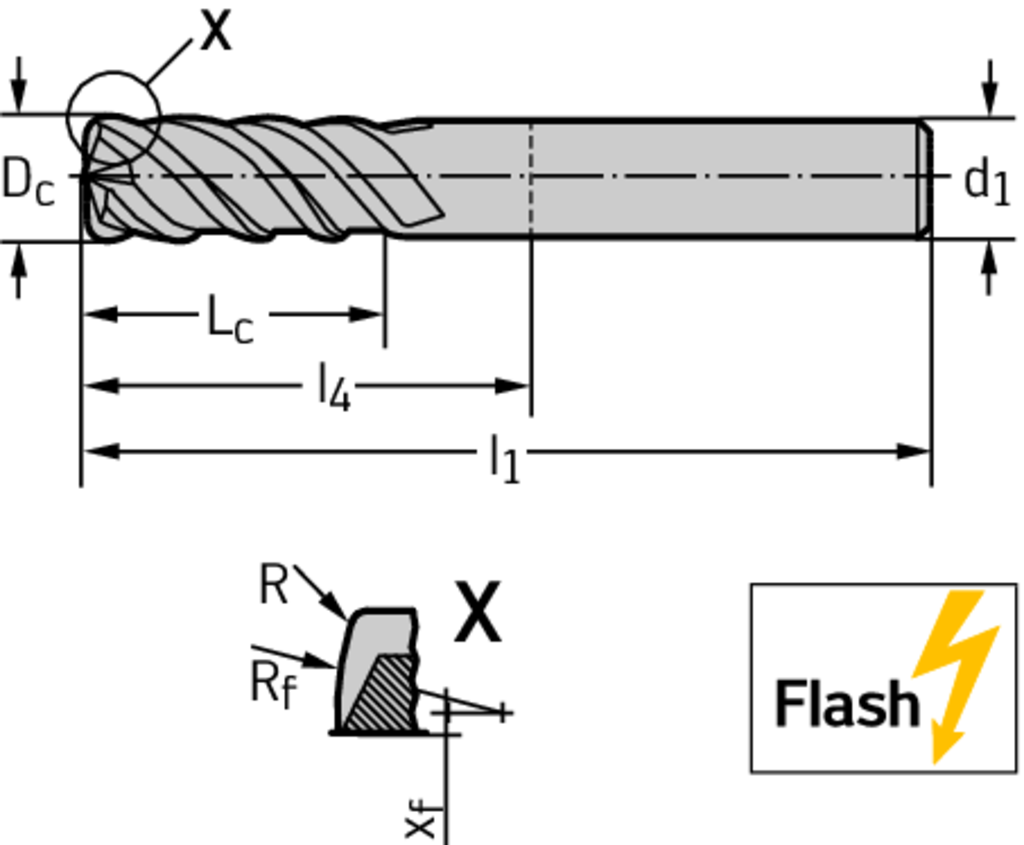

Tool designation (Designation) MC025.15.9A4D203-WJ30TF

Cutting edge diameter (D c) 5/8" Inch_No_Let

Offset radius (x f) 0,118 inch

Corner radius (R f) 0,315 inch

Equivalent radius (R ers) 0,11 inch

Corner radius (r) 0,08 inch

Cutting edge length (L c) 1,25 inch

Overall length (l 1) 3,5 inch

Maximum projection length (l 4) 1,595 inch

Connection diameter (d 1) 5/8 inch

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide high feed milling cutters MC025 • Advance • Parallel shank • inch • flute helix angle 50° • WJ30TF • Dc=15,875mm • Z=4

Article number (J21):

MC025.15.9A4D203-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

15,875 mm

Depth of cut maximum (B2):

31,75 mm

Protruding length (B3):

40,5 mm

Overall length (B5):

88,9 mm

Functional length (B71):

88,9 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0625

Connection diameter machine side (C3):

15,875 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

90 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,24 kg

Rake angle radial (E2):

-18 °

Rake angle axial (E3):

6 °

Ramping angle maximum (E4):

5 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

50 °

Corner radius (G1):

2,032 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30TF

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

STANDARD

Data chip provision (J7):

Solid carbide high feed milling cutters MC025 MC025.15.9A4D203-WJ30TF
