Solid carbide high feed milling cutters MC025 MC025.15.9E4P203-WJ30TF

Solid carbide high feed milling cutters MC025 MC025.15.9E4P203-WJ30TF

€

105.30

EX VAT

€

129.52

INC VAT

Walter Prototyp

Solid carbide high feed milling cutters MC025 MC025.15.9E4P203-WJ30TF

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

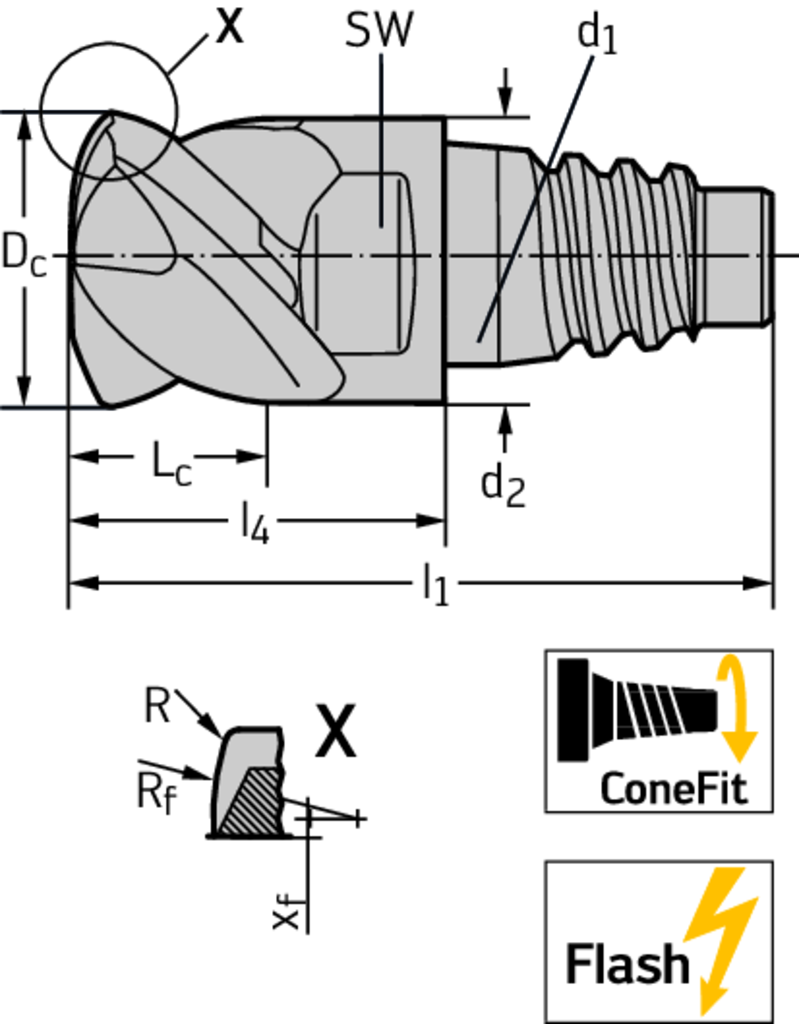

Tool designation (Designation) MC025.15.9E4P203-WJ30TF

Cutting edge diameter (D c) 5/8" Inch_No_Let

Offset radius (x f) 0,118 inch

Corner radius (R f) 0,315 inch

Equivalent radius (R ers) 0,11 inch

Corner radius (r) 0,08 inch

Cutting edge length (L c) 0,335 inch

Overall length (l 1) 1,406 inch

Maximum projection length (l 4) 0,736 inch

Wrench size (SW) 0,472 inch

Connection size code (d 1) E16 inch

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide high feed milling cutters MC025 • Advance • ConeFit • inch • flute helix angle 50° • WJ30TF • Dc=15,875mm • Z=4

Article number (J21):

MC025.15.9E4P203-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

15,875 mm

Neck diameter (A5):

15,5 mm

Depth of cut maximum (B2):

8,5 mm

Protruding length (B3):

18,7 mm

Overall length (B5):

35,7 mm

Functional length (B71):

18,7 mm

Neck length (B9):

18,7

Connection code type machine side (C11):

SAC

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0160

Connection diameter machine side (C3):

15,5 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,067 kg

Rake angle radial (E2):

-18 °

Rake angle axial (E3):

6 °

Ramping angle maximum (E4):

5 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

50 °

Corner radius (G1):

8 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30TF

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

PWZ-NORM

Data chip provision (J7):
