Solid carbide high feed milling cutters MD025 MD025.12.7A6D152C-WJ30RA

Solid carbide high feed milling cutters MD025 MD025.12.7A6D152C-WJ30RA

€

198.40

EX VAT

€

244.03

INC VAT

Walter Prototyp

Solid carbide high feed milling cutters MD025 MD025.12.7A6D152C-WJ30RA

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

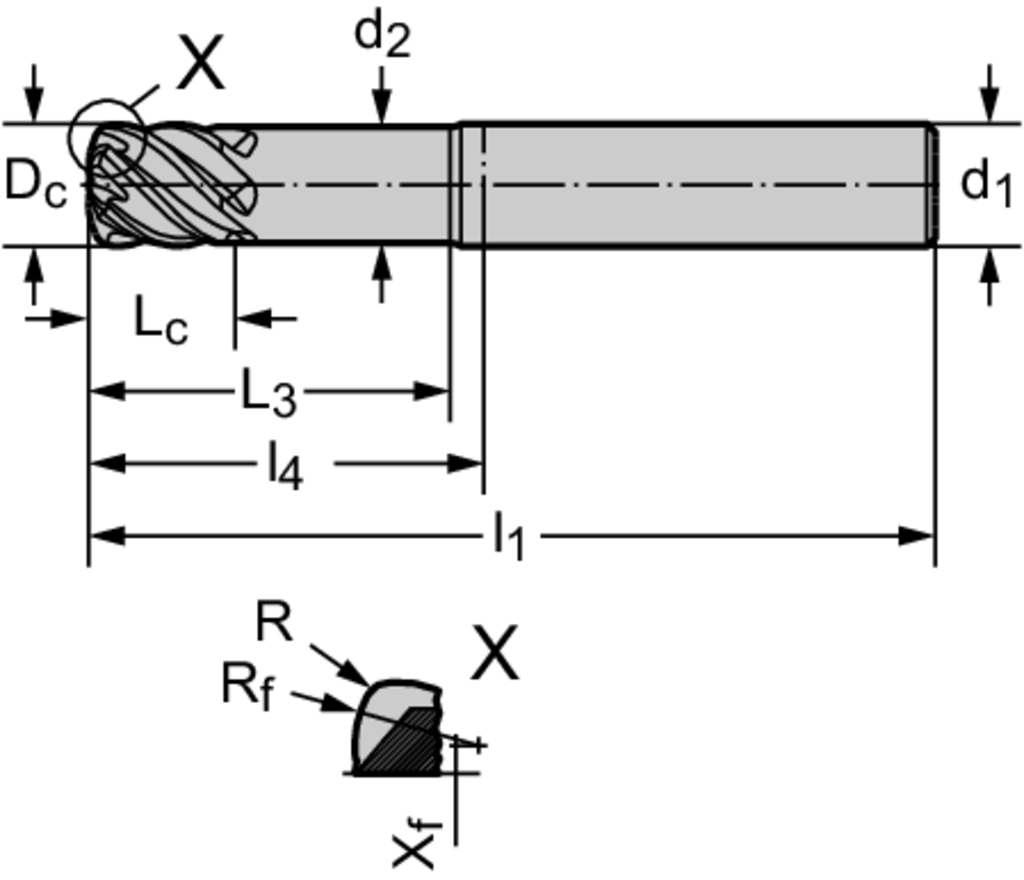

Tool designation (Designation) MD025.12.7A6D152C-WJ30RA

Cutting edge diameter (D c) 1/2" Inch_No_Let

Offset radius (x f) 0,098 inch

Corner radius (R f) 0,236 inch

Equivalent radius (R ers) 0,086 inch

Corner radius (r) 0,06 inch

Cutting edge length (L c) 0,5 inch

Overall length (l 1) 3,5 inch

Useable length (l 3) 1,5 inch

Maximum projection length (l 4) 1,717 inch

Connection diameter (d 1) 1/2 inch

Number of teeth (Z) 6

Insert Shape MD

DESCRIPTION & FEATURES

Solid carbide high feed milling cutters MD025 • Supreme • Parallel shank • inch • flute helix angle 50° • WJ30RA • Dc=12,7mm • Z=6

Article number (J21):

MD025.12.7A6D152C-WJ30RA

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12,7 mm

Neck diameter (A5):

12,06 mm

Depth of cut maximum (B2):

12,7 mm

Protruding length (B3):

43,6 mm

Overall length (B5):

88,9 mm

Functional length (B71):

88,9 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

12,7 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

80 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,161 kg

Rake angle radial (E2):

-18 °

Rake angle axial (E3):

4 °

Ramping angle maximum (E4):

5 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

50 °

Corner radius (G1):

6 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30RA

Body material code (H4):

Coating (H5):

TiAlN + TiAl

Standard (J1):

STANDARD

Data chip provision (J7):

Solid carbide high feed milling cutters MD025 MD025.12.7A6D152C-WJ30RA
