Solid carbide high feed milling cutters MC089-08.0A4B100-WB10TG

Solid carbide high feed milling cutters MC089-08.0A4B100-WB10TG

€

87.00

EX VAT

€

107.01

INC VAT

Walter Prototyp

Solid carbide high feed milling cutters MC089-08.0A4B100-WB10TG

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

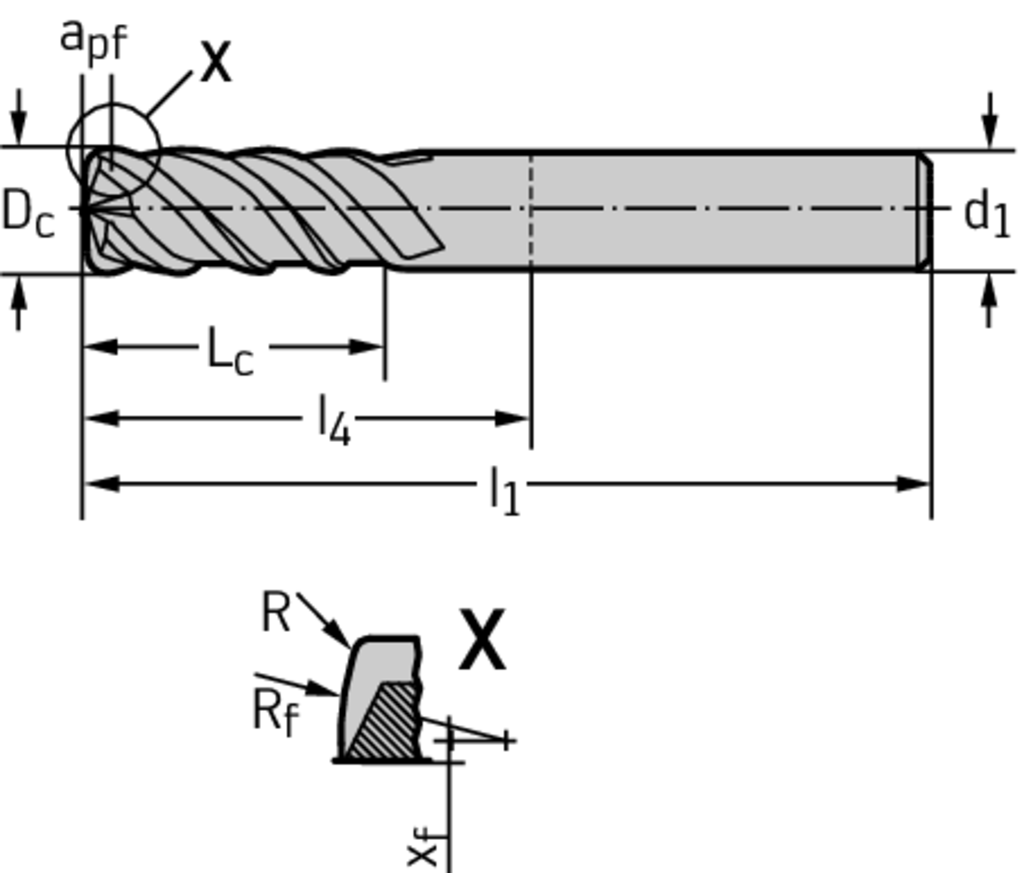

PRODUCT ATTRIBUTES

Tool designation (Designation) MC089-08.0A4B100-WB10TG

Cutting edge diameter (D c) 8 mm

Correction for average (a pf) 0,25 mm

Offset radius (x f) 0,78 mm

Corner radius (R f) 12 mm

Equivalent radius (R ers) 1,226 mm

Corner radius (r) 1 mm

Cutting edge length (L c) 20 mm

Overall length (l 1) 63 mm

Maximum projection length (l 4) 27 mm

Connection diameter (d 1) 8 mm

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide high feed milling cutters MC089 • Advance • DIN 6535 HA shank • metric • flute helix angle 50° • WB10TG • Dc=8mm • Z=4

Article number (J21):

MC089-08.0A4B100-WB10TG

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

8 mm

Depth of cut maximum (B2):

20 mm

Protruding length (B3):

27 mm

Overall length (B5):

63 mm

Functional length (B71):

63 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,05 kg

Rake angle radial (E2):

-18 °

Rake angle axial (E3):

-6 °

Ramping angle maximum (E4):

3 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

50 °

Corner radius (G1):

1 mm

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WB10TG

Body material code (H4):

Coating (H5):

TiAlSiN

Standard (J1):

DIN 6527 L

Standard letter to the standard number (J11):

Data chip provision (J7):
