Solid carbide HSC reamers F2482-5.5

€

121.00

EX VAT

€

148.83

INC VAT

Walter Titex

Solid carbide HSC reamers F2482-5.5

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

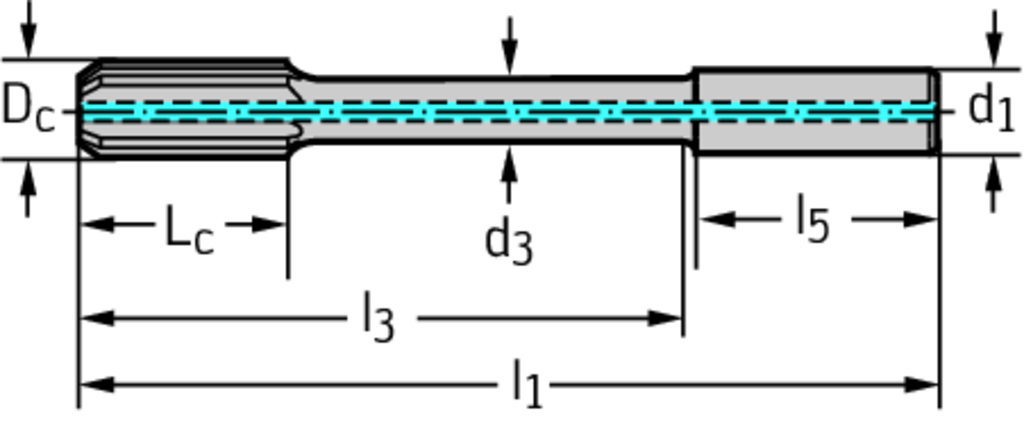

Tool designation (Designation) F2482-5.5

Cutting edge diameter (D c) 5.5 mm

Cutting edge length (L c) 12 mm

Overall length (l 1) 75 mm

Useable length (l 3) 35 mm

shank length (l 5) 36 mm

Connection diameter (d 1) 6 mm

Cutting diameter (d 3) 4,9 mm

Number of teeth (Z) 4

Insert Shape F2

DESCRIPTION & FEATURES

Solid carbide HSC reamers F2482 • DIN 6535 HA shank • Dc=5,5mm

Article number (J21):

F2482-5.5

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-126

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

5,5 mm

Protruding length (B3):

39,3 mm

Usable length (B4):

35 mm

Overall length (B5):

75 mm

Functional length (B71):

75 mm

Plug length (B8):

0,3 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

0 °

Rotational speed maximum (D6):

20000 1/min

Weight of item (D7):

0,027 kg

Plug angle (E6):

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Standard (J1):

TP-NORM

Standard letter to the standard number (J11):

Size to the standard number (J12):

Data chip provision (J7):
