Solid carbide pilot drills with coolant-through K5191TFT-6

Solid carbide pilot drills with coolant-through K5191TFT-6

€

125.00

EX VAT

€

153.75

INC VAT

Walter Titex

Solid carbide pilot drills with coolant-through K5191TFT-6

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

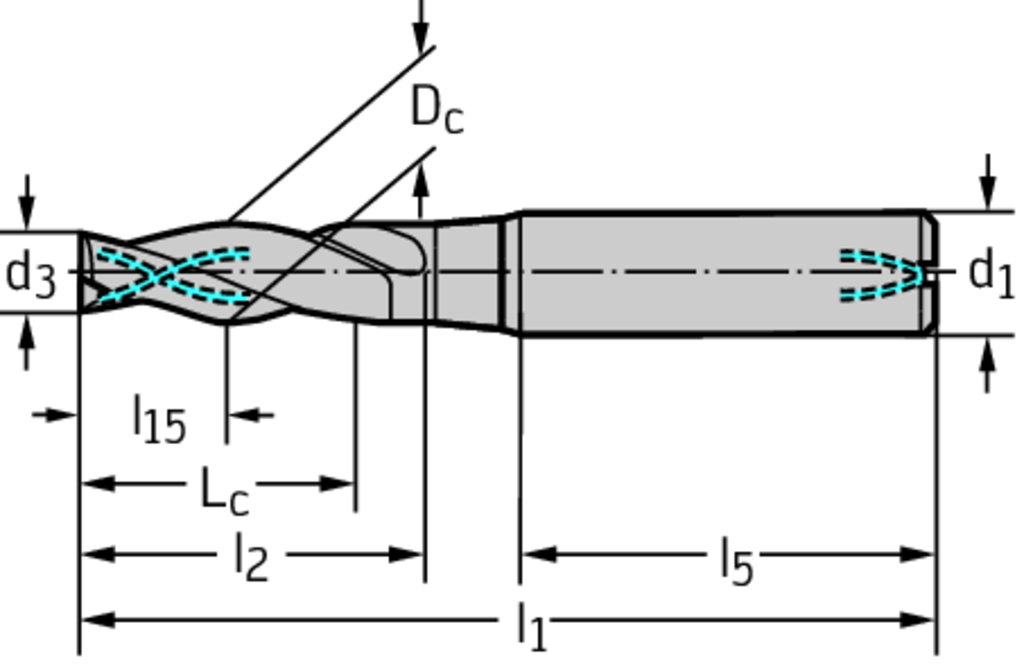

Tool designation (Designation) K5191TFT-6

Cutting edge diameter (D c) 6 mm

Cutting diameter (d 3) 5,85 mm

Cutting edge length (L c) 13 mm

Overall length (l 1) 68 mm

Flute length (l 2) 22 mm

shank length (l 5) 36 mm

Distance reference point PK (l 15) 4,5 mm

Shank diameter (d 1) 8 mm

Insert Shape K5

DESCRIPTION & FEATURES

Solid carbide pilot drills with coolant-through K5191TFT • Xtreme Pilot 180 C • DIN 6535 HA shank • TFT • 2xD • point angle 180° • Dc=6mm

Article number (J21):

K5191TFT-6

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

6 mm

Protruding length (B3):

27,5 mm

Usable length (B4):

13 mm

Overall length (B5):

68 mm

Length chip flute (B6):

22 mm

Point length (B7):

0 mm

Functional length (B71):

63,5 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,05 kg

Point angle 1st step (E1):

180 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TFT

Body material code (H4):

Coating (H5):

TiNAl

Standard (J1):

TP-NORM

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Through Coolant
