Solid carbide routing cutters MC716-13.7W2A-WJ30TF

Solid carbide routing cutters MC716-13.7W2A-WJ30TF

€

88.50

EX VAT

€

108.86

INC VAT

Walter Prototyp

Solid carbide routing cutters MC716-13.7W2A-WJ30TF

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

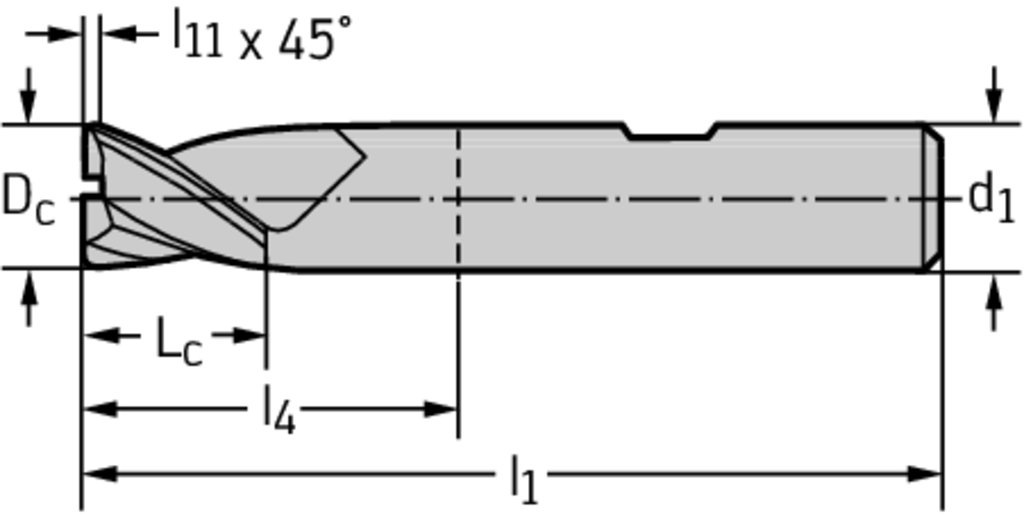

Tool designation (Designation) MC716-13.7W2A-WJ30TF

Cutting edge diameter (D c) 13.7 mm

Corner chamfer width (l 11) 0,3 mm

Cutting edge length (L c) 14 mm

Overall length (l 1) 75 mm

Functional length (l 4) 30 mm

Shank diameter (d 1) 14 mm

Number of teeth (Z) 2

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide routing cutters MC716 • Advance • DIN 6535 HB shank • metric • flute helix angle 30° • Type 30 • centre cutting capability • WJ30TF • Dc=13,7mm • Z=2

Article number (J21):

MC716-13.7W2A-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

13,7 mm

Depth of cut maximum (B2):

14 mm

Protruding length (B3):

30 mm

Overall length (B5):

75 mm

Functional length (B71):

52,5 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0140

Connection diameter machine side (C3):

14 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

45 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,152 kg

Rake angle radial (E2):

10,5 °

Rake angle axial (E3):

13,5 °

Ramping angle maximum (E4):

30 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

30 °

Corner chamfer width (G2):

0,25 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30TF

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

DIN 6527 K

Standard letter to the standard number (J11):

Data chip provision (J7):
