3/4" Solid carbide shoulder milling cutters MC128 MC128.19.1A8D318-WJ30TF

€

294.75

EX VAT

€

362.54

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MC128 • Advance • Parallel shank • inch • flute helix angle 50° • Type N 50 • WJ30TF • Dc=19,05mm • R=3,17mm • Z=8

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

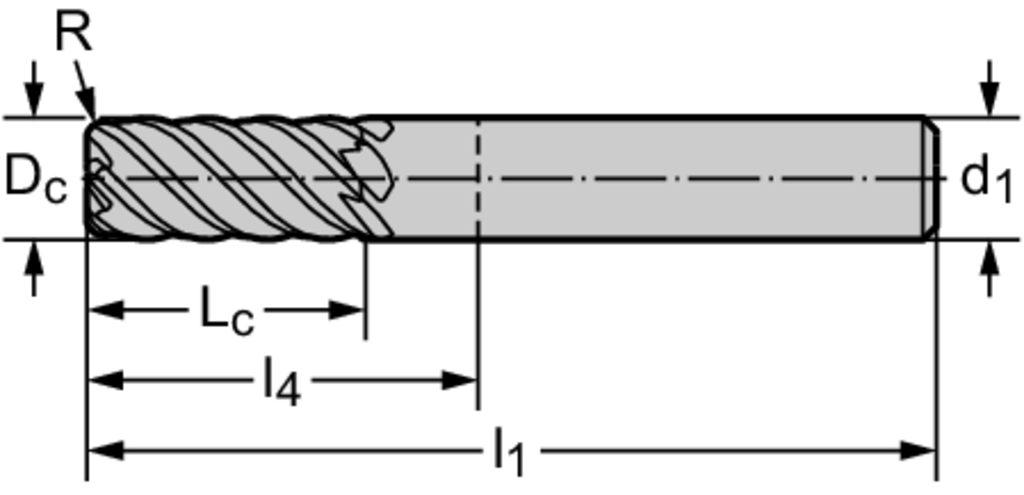

PRODUCT ATTRIBUTES

Tool designation (Designation) MC128.19.1A8D318-WJ30TF

Cutting edge diameter (D c) 3/4" Inch_No_Let

Corner radius (r) 0,125 inch

Cutting edge length (L c) 1,75 inch

Overall length (l 1) 4,5 inch

Functional length (l 4) 2,469 inch

Shank diameter (d 1) 0,75 inch

Number of teeth (Z) 8

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters MC128 • Advance • Parallel shank • inch • flute helix angle 50° • Type N 50 • WJ30TF • Dc=19,05mm • R=3,17mm • Z=8

Article number (J21):

MC128.19.1A8D318-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

19,05 mm

Depth of cut maximum (B2):

44,45 mm

Protruding length (B3):

62,7 mm

Overall length (B5):

114,3 mm

Functional length (B71):

114,3 mm

Neck length (B9):

44,45

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0750

Connection diameter machine side (C3):

19,05 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

51,6 mm

Rotational speed maximum (D6):

87520 1/min

Weight of item (D7):

0,451 kg
