1/2" Solid carbide shoulder milling cutters MD133 MD133.12.7W5L076D-WJ30RD

€

164.80

EX VAT

€

202.70

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MD133 • Supreme • DIN 6535 HB shank • inch • flute helix angle 35° • Chip breaker • Long reach • WJ30RD • Dc=12,7mm • R=0,76mm • Z=5

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

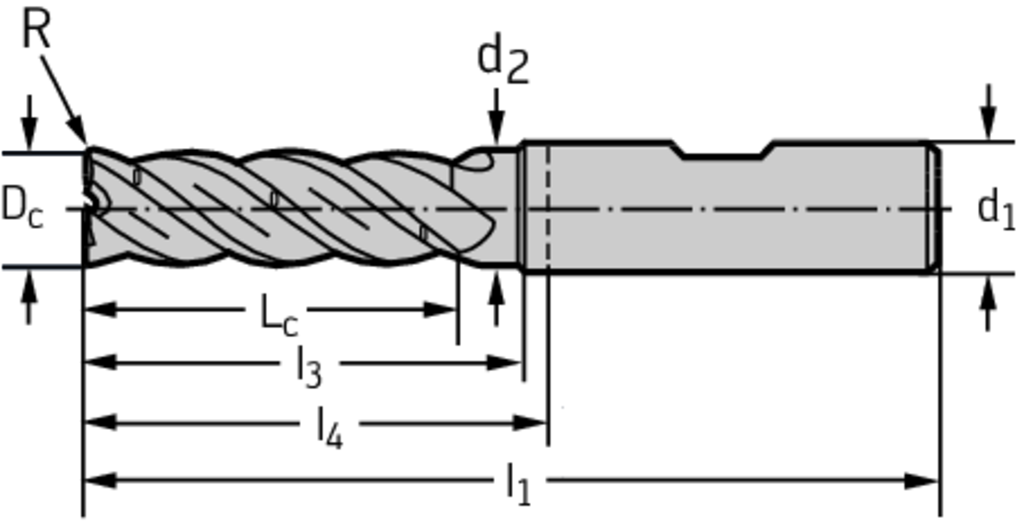

PRODUCT ATTRIBUTES

Tool designation (Designation) MD133.12.7W5L076D-WJ30RD

Cutting edge diameter (D c) 1/2" Inch_No_Let

Corner radius (r) 0,03 inch

Cutting edge length (L c) 1,75 inch

Useable length (l 3) 2,125 inch

Neck diameter (d 2) 0,475 inch

Overall length (l 1) 4 inch

Functional length (l 4) 2,217 inch

Shank diameter (d 1) 0,5 inch

Number of teeth (Z) 5

Insert Shape MD

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters MD133 • Supreme • DIN 6535 HB shank • inch • flute helix angle 35° • Chip breaker • Long reach • WJ30RD • Dc=12,7mm • R=0,76mm • Z=5

Article number (J21):

MD133.12.7W5L076D-WJ30RD

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12,7 mm

Neck diameter (A5):

12,06 mm

Depth of cut maximum (B2):

44,45 mm

Protruding length (B3):

56,3 mm

Overall length (B5):

101,6 mm

Functional length (B71):

78,978 mm

Neck length (B9):

53,975

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

12,7 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

80 mm

Rotational speed maximum (D6):

34106 1/min
