16mm Solid carbide shoulder milling cutters H7073417-16X90

16mm Solid carbide shoulder milling cutters H7073417-16X90

€

282.80

EX VAT

€

347.84

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters H7073417 • Protostar Ti • DIN 6535 HA shank • metric • flute helix angle 45° • Type Ti 45, extra long • centre cutting capability • ACN • Dc=16mm • R=4mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

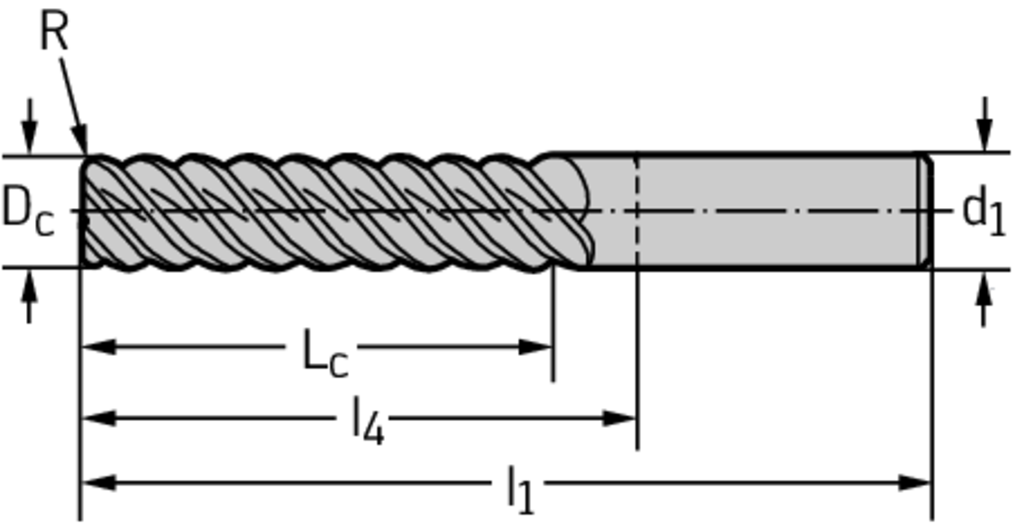

Tool designation (Designation) H7073417-16X90

Cutting edge diameter (D c) 16 mm

Corner radius (r) 4 mm

Cutting edge length (L c) 90 mm

Overall length (l 1) 145 mm

Functional length (l 4) 97 mm

Shank diameter (d 1) 16 mm

Number of teeth (Z) 4

Insert Shape H7

DESCRIPTION & FEATURES

Article number (J21):

H7073417-16X90

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

16 mm

Depth of cut maximum (B2):

90 mm

Protruding length (B3):

97 mm

Overall length (B5):

145 mm

Functional length (B71):

145 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0160

Connection diameter machine side (C3):

16 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

48 mm

Rotational speed maximum (D6):

25526 1/min

Weight of item (D7):

0,364 kg
