Solid carbide shoulder milling cutters MC183-16.0W16B-WB10TG

Solid carbide shoulder milling cutters MC183-16.0W16B-WB10TG

€

295.50

EX VAT

€

363.47

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MC183-16.0W16B-WB10TG

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

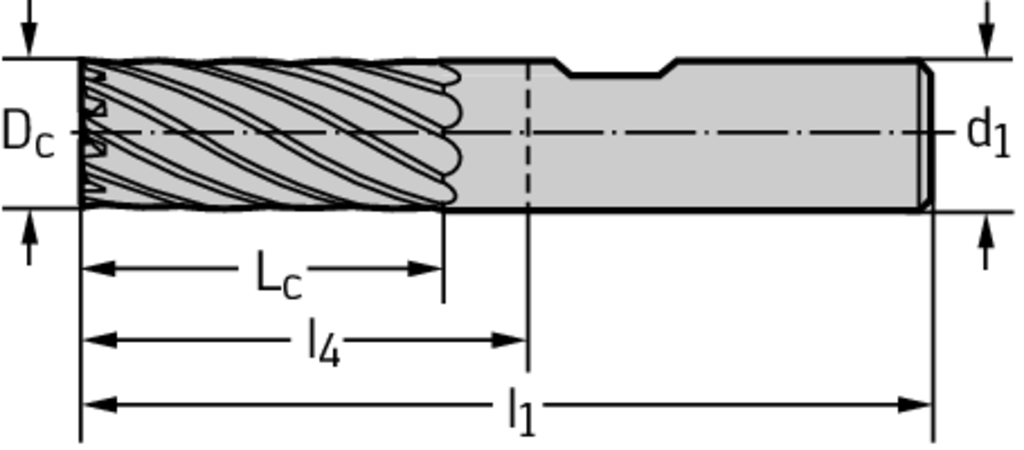

Tool designation (Designation) MC183-16.0W16B-WB10TG

Cutting edge diameter (D c) 16 mm

Cutting edge length (L c) 32 mm

Overall length (l 1) 92 mm

Functional length (l 4) 44 mm

Shank diameter (d 1) 16 mm

Number of teeth (Z) 16

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters MC183 • Advance • DIN 6535 HB shank • metric • flute helix angle 30° • WB10TG • Dc=16mm • Z=16

Article number (J21):

MC183-16.0W16B-WB10TG

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

16 mm

Depth of cut maximum (B2):

32 mm

Protruding length (B3):

44 mm

Overall length (B5):

92 mm

Functional length (B71):

68 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0160

Connection diameter machine side (C3):

16 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

48 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,273 kg

Rake angle radial (E2):

-8,5 °

Rake angle axial (E3):

1,5 °

Ramping angle maximum (E4):

2 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

30 °

Corner chamfer width (G2):

0,15 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WB10TG

Body material code (H4):

Coating (H5):

TiAlSiN

Standard (J1):

DIN 6527 L

Standard letter to the standard number (J11):

Data chip provision (J7):
