20mm Solid carbide shoulder milling cutters MD177-20.0A7B100-WJ30EN20mm Solid carbide shoulder milling cutters MD177-20.0A7B100-WJ30EN
20mm Solid carbide shoulder milling cutters MD177-20.0A7B100-WJ30EN 20mm Solid carbide shoulder milling cutters MD177-20.0A7B100-WJ30EN

20mm Solid carbide shoulder milling cutters MD177-20.0A7B100-WJ30EN

€
300.00
EX VAT
€
369.00
INC VAT
Walter Prototyp
Solid carbide shoulder milling cutters MD177 • Supreme • metric • Parallel shank • flute helix angle 38° • centre cutting capability • WJ30EN • Dc=20mm • R=1mm • Z=7
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

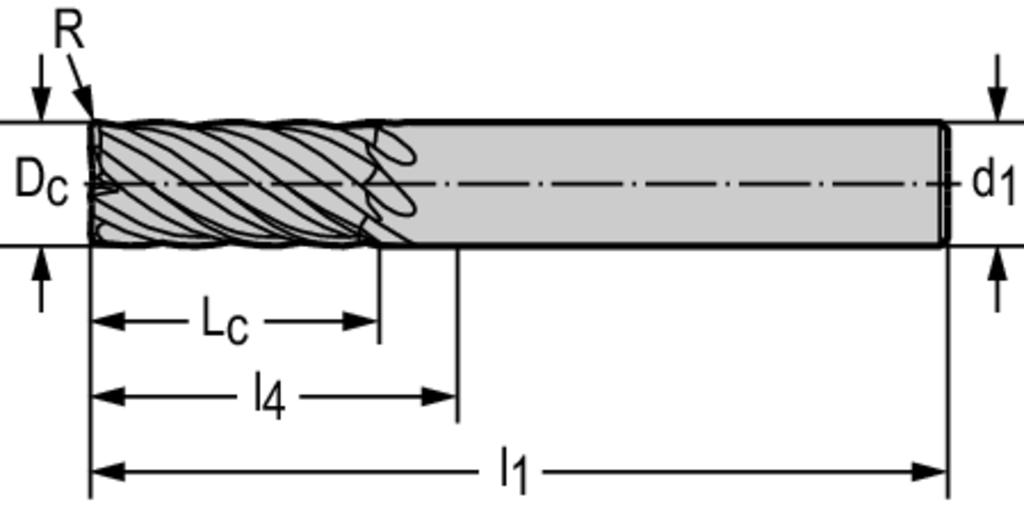

Tool designation (Designation) MD177-20.0A7B100-WJ30EN
Cutting edge diameter (D c) 20 mm
Corner radius (r) 1 mm
Cutting edge length (L c) 38 mm
Overall length (l 1) 104 mm
Functional length (l 4) 54 mm
Shank diameter (d 1) 20 mm
Number of teeth (Z) 7
Insert Shape MD
DESCRIPTION & FEATURES
Solid carbide shoulder milling cutters MD177 • Supreme • metric • Parallel shank • flute helix angle 38° • centre cutting capability • WJ30EN • Dc=20mm • R=1mm • Z=7
Article number (J21):
MD177-20.0A7B100-WJ30EN
Standard number of properties layout (NSM):
DIN4000-82
Company code (J3):
W
Tool style code (BLD):
2
Cutting diameter (A1):
20 mm
Depth of cut maximum (B2):
38 mm
Protruding length (B3):
54 mm
Overall length (B5):
104 mm
Functional length (B71):
104 mm
Neck length (B9):
38
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0200
Connection diameter machine side (C3):
20 mm
ISO-tolerance class shank diameter (C31):
h6
Shank length (C4):
50 mm
Rotational speed maximum (D6):
80000 1/min
Weight of item (D7):
0,001 kg
