6mm Solid carbide shoulder milling cutters MD177-06.0A7L030K-WJ30EN6mm Solid carbide shoulder milling cutters MD177-06.0A7L030K-WJ30EN
6mm Solid carbide shoulder milling cutters MD177-06.0A7L030K-WJ30EN 6mm Solid carbide shoulder milling cutters MD177-06.0A7L030K-WJ30EN

6mm Solid carbide shoulder milling cutters MD177-06.0A7L030K-WJ30EN

€
59.60
EX VAT
€
73.31
INC VAT
Walter Prototyp
6mm Solid carbide shoulder milling cutters MD177 • Supreme • metric • Parallel shank • flute helix angle 38° • centre cutting capability • WJ30EN • Dc=6mm • R=0.3mm • Z=7
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

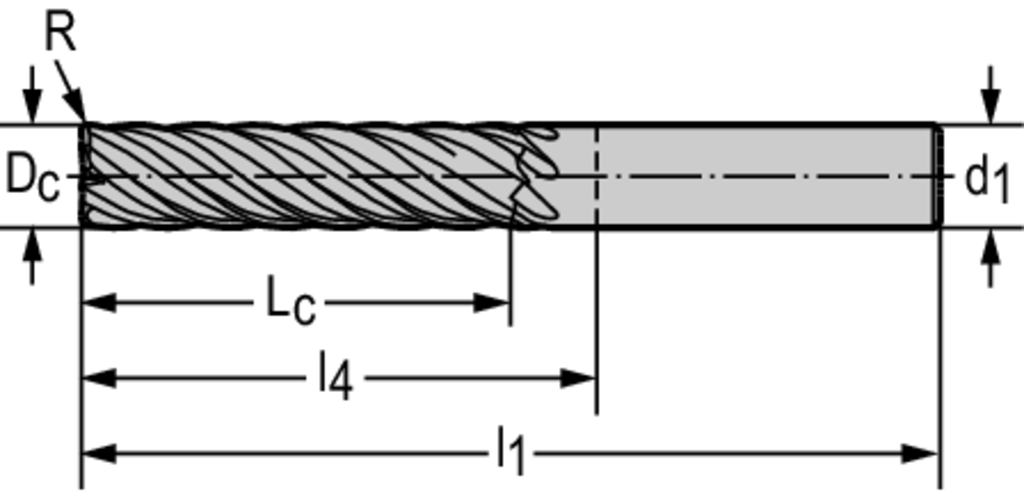

PRODUCT ATTRIBUTES
Tool designation (Designation) MD177-06.0A7L030K-WJ30EN
Cutting edge diameter (D c) 6 mm
Corner radius (r) 0.3 mm
Cutting edge length (L c) 25 mm
Overall length (l 1) 65 mm
Functional length (l 4) 29 mm
Shank diameter (d 1) 6 mm
Number of teeth (Z) 7
Insert Shape MD
DESCRIPTION & FEATURES

6mm Solid carbide shoulder milling cutters MD177 • Supreme • metric • Parallel shank • flute helix angle 38° • centre cutting capability • WJ30EN • Dc=6mm • R=0.3mm • Z=7

Article number (J21):
MD177-06.0A7L030K-WJ30EN
Standard number of properties layout (NSM):
DIN4000-82
Company code (J3):
W
Tool style code (BLD):
2
Cutting diameter (A1):
6 mm
Depth of cut maximum (B2):
25 mm
Protruding length (B3):
29 mm
Overall length (B5):
65 mm
Functional length (B71):
65 mm
Neck length (B9):
25
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0060
Connection diameter machine side (C3):
6 mm
ISO-tolerance class shank diameter (C31):
h6
Shank length (C4):
36 mm
Rotational speed maximum (D6):
80000 1/min
Weight of item (D7):
0,001 kg
