16mm Solid carbide shoulder milling cutters MD128-16.0E6X050-WJ30RA16mm Solid carbide shoulder milling cutters MD128-16.0E6X050-WJ30RA
16mm Solid carbide shoulder milling cutters MD128-16.0E6X050-WJ30RA 16mm Solid carbide shoulder milling cutters MD128-16.0E6X050-WJ30RA

16mm Solid carbide shoulder milling cutters MD128-16.0E6X050-WJ30RA

€
177.30
EX VAT
€
218.08
INC VAT
Walter Prototyp
Solid carbide shoulder milling cutters MD128 • ConeFit • metric • flute helix angle 50° • Type N 50 • WJ30RA • Dc=16mm • R=0,5mm • Z=6
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

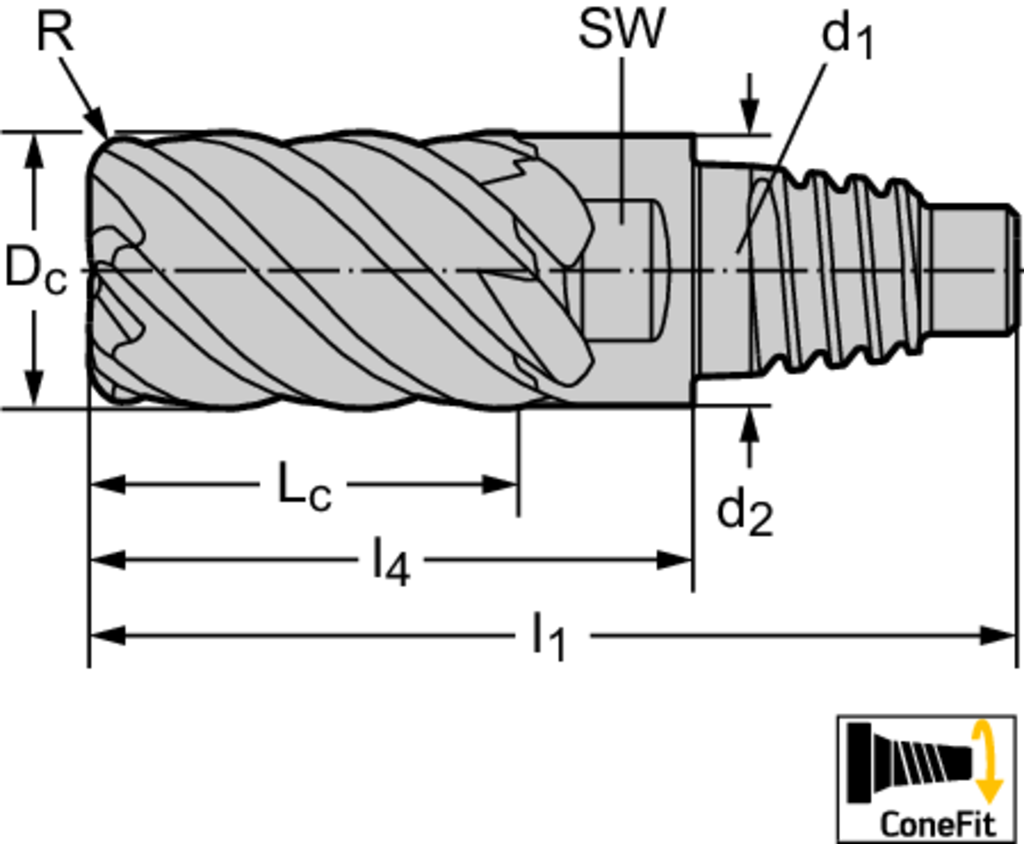

PRODUCT ATTRIBUTES
Tool designation (Designation) MD128-16.0E6X050-WJ30RA
Cutting edge diameter (D c) 16 mm
Corner radius (r) 0.5 mm
Cutting edge length (L c) 24 mm
Neck diameter (d 2) 15,5 mm
Overall length (l 1) 51,2 mm
Functional length (l 4) 34,2 mm
Wrench size (SW) 12 mm
Shank diameter (d 1) E16 mm
Number of teeth (Z) 6
Insert Shape MD
DESCRIPTION & FEATURES
Solid carbide shoulder milling cutters MD128 • ConeFit • metric • flute helix angle 50° • Type N 50 • WJ30RA • Dc=16mm • R=0,5mm • Z=6
Article number (J21):
MD128-16.0E6X050-WJ30RA
Standard number of properties layout (NSM):
DIN4000-82
Company code (J3):
W
Tool style code (BLD):
1
Cutting diameter (A1):
16 mm
Neck diameter (A5):
15,5 mm
Depth of cut maximum (B2):
24 mm
Protruding length (B3):
34,2 mm
Overall length (B5):
51,2 mm
Functional length (B71):
34,2 mm
Neck length (B9):
34,2
Connection code type machine side (C11):
SAC
Connection code form at machine side (C12):
04
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
15,5 mm
Rotational speed maximum (D6):
80000 1/min
Weight of item (D7):
0,11 kg
Rake angle radial (E2):
10,5 °
