4mm Solid carbide shoulder milling cutters MC187-04.0A4B050-WB10TG

4mm Solid carbide shoulder milling cutters MC187-04.0A4B050-WB10TG

€

53.48

EX VAT

€

65.78

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MC187 • Advance • DIN 6535 HA shank • metric • flute helix angle 50° • WB10TG • Dc=4mm • R=0,5mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

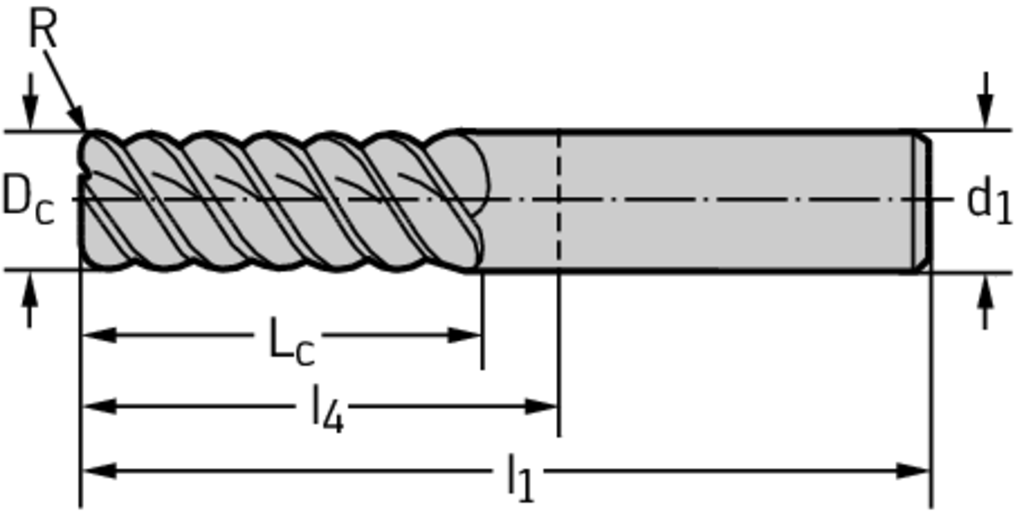

Tool designation (Designation) MC187-04.0A4B050-WB10TG

Cutting edge diameter (D c) 4 mm

Corner radius (r) 0.5 mm

Cutting edge length (L c) 11 mm

Overall length (l 1) 57 mm

Functional length (l 4) 21 mm

Shank diameter (d 1) 6 mm

Number of teeth (Z) 4

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters MC187 • Advance • DIN 6535 HA shank • metric • flute helix angle 50° • WB10TG • Dc=4mm • R=0,5mm • Z=4

Article number (J21):

MC187-04.0A4B050-WB10TG

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

4 mm

Neck diameter (A5):

4,05 mm

Depth of cut maximum (B2):

11 mm

Protruding length (B3):

21 mm

Overall length (B5):

57 mm

Functional length (B71):

57 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min
