10mm Solid carbide shoulder milling cutters MC128-10.0E6P100-WJ30TF10mm Solid carbide shoulder milling cutters MC128-10.0E6P100-WJ30TF
10mm Solid carbide shoulder milling cutters MC128-10.0E6P100-WJ30TF 10mm Solid carbide shoulder milling cutters MC128-10.0E6P100-WJ30TF

10mm Solid carbide shoulder milling cutters MC128-10.0E6P100-WJ30TF

€
66.42
EX VAT
€
81.70
INC VAT
Walter Prototyp
Solid carbide shoulder milling cutters MC128 • ConeFit • metric • flute helix angle 50° • Type N 50 • WJ30TF • Dc=10mm • R=1mm • Z=6
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

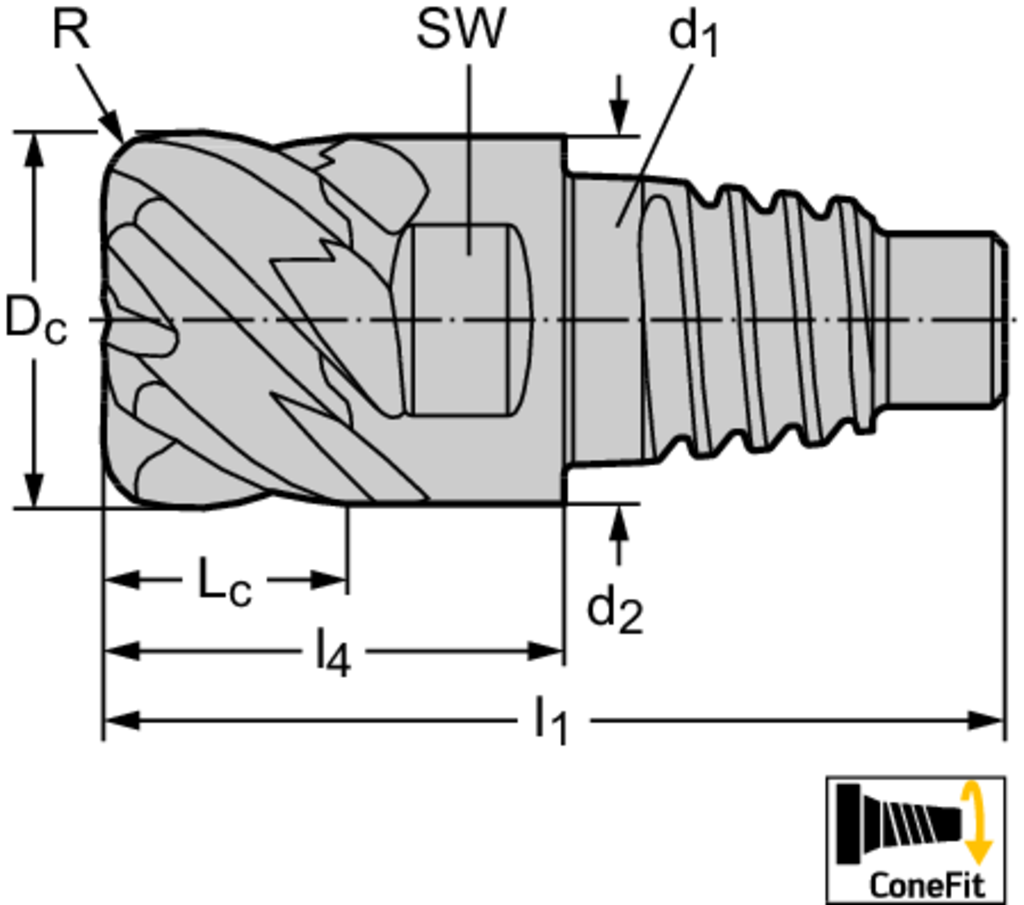

PRODUCT ATTRIBUTES
Tool designation (Designation) MC128-10.0E6P100-WJ30TF
Cutting edge diameter (D c) 10 mm
Corner radius (r) 1 mm
Cutting edge length (L c) 5,5 mm
Neck diameter (d 2) 9,7 mm
Overall length (l 1) 23,6 mm
Functional length (l 4) 12,4 mm
Wrench size (SW) 8 mm
Shank diameter (d 1) E10 mm
Number of teeth (Z) 6
Insert Shape MC
DESCRIPTION & FEATURES
Solid carbide shoulder milling cutters MC128 • ConeFit • metric • flute helix angle 50° • Type N 50 • WJ30TF • Dc=10mm • R=1mm • Z=6
Article number (J21):
MC128-10.0E6P100-WJ30TF
Standard number of properties layout (NSM):
DIN4000-82
Company code (J3):
W
Tool style code (BLD):
1
Cutting diameter (A1):
10 mm
Neck diameter (A5):
9,7 mm
Depth of cut maximum (B2):
5,5 mm
Protruding length (B3):
12,4 mm
Overall length (B5):
23,6 mm
Functional length (B71):
12,4 mm
Neck length (B9):
12,4
Connection code type machine side (C11):
SAC
Connection code form at machine side (C12):
04
Connection code unit base machine side (C14):
8
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0100
Connection diameter machine side (C3):
9,7 mm
Rotational speed maximum (D6):
80000 1/min
Weight of item (D7):
0,02 kg
Rake angle radial (E2):
10,5 °
