6mm Solid carbide shoulder milling cutters MC112-06.0A4L100-WJ30TF

6mm Solid carbide shoulder milling cutters MC112-06.0A4L100-WJ30TF

€

51.23

EX VAT

€

63.01

INC VAT

Walter Prototyp

Solid carbide shoulder milling cutters MC112 • Advance • DIN 6535 HA shank • metric • flute helix angle 30° • Long reach • Type HSC 30 • centre cutting capability • WJ30TF • Dc=6mm • R=1mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

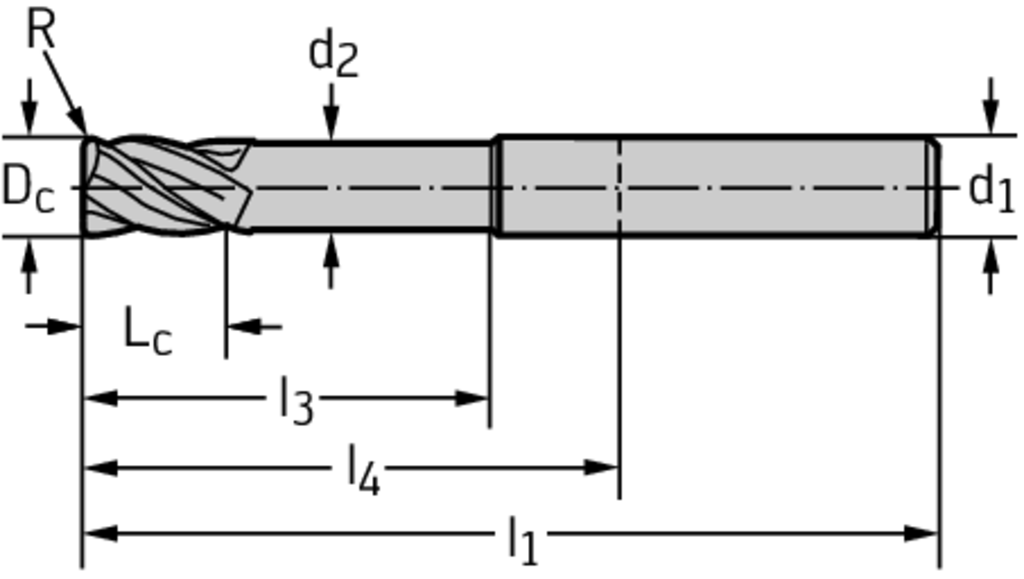

PRODUCT ATTRIBUTES

Tool designation (Designation) MC112-06.0A4L100-WJ30TF

Cutting edge diameter (D c) 6 mm

Corner radius (r) 1 mm

Cutting edge length (L c) 6 mm

Useable length (l 3) 24 mm

Neck diameter (d 2) 5,7 mm

Overall length (l 1) 63 mm

Functional length (l 4) 27 mm

Shank diameter (d 1) 8 mm

Number of teeth (Z) 4

DESCRIPTION & FEATURES

Article number (J21):

MC112-06.0A4L100-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

6 mm

Neck diameter (A5):

5,7 mm

Depth of cut maximum (B2):

6 mm

Protruding length (B3):

27 mm

Overall length (B5):

63 mm

Functional length (B71):

63 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min
