Solid carbide shoulder milling cutters AH3023418-1/4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

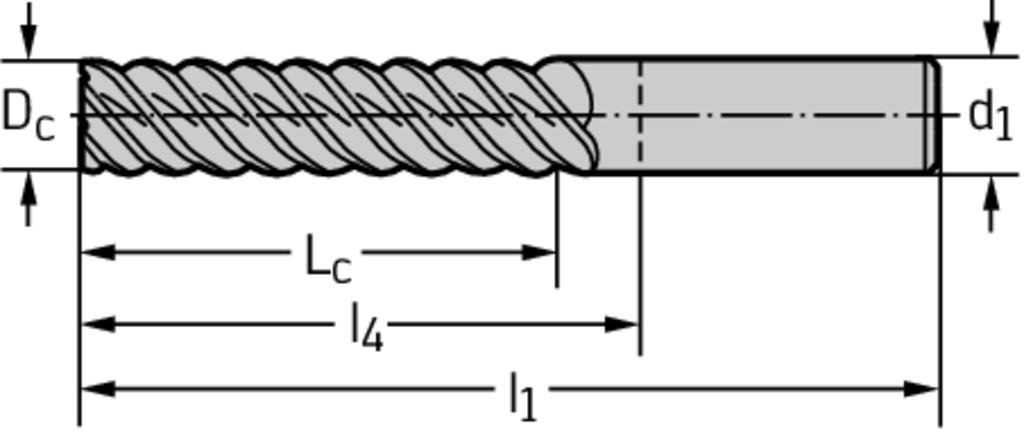

PRODUCT ATTRIBUTES

Tool designation (Designation) AH3023418-1/4

Cutting edge diameter (D c) 6.35 mm

Cutting edge length (L c) 28,58 mm

Overall length (l 1) 76,2 mm

Functional length (l 4) 40,2 mm

Shank diameter (d 1) 6,35 mm

Number of teeth (Z) 4

Insert Shape AH

DESCRIPTION & FEATURES

Solid carbide shoulder milling cutters AH3023418 • Protostar • Parallel shank • inch • flute helix angle 45° • Type N 45, extra long • centre cutting capability • TAX • Dc=6,35mm • Z=4

Article number (J21):

AH3023418-1/4

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

6,35 mm

Depth of cut maximum (B2):

28,575 mm

Protruding length (B3):

40,2 mm

Overall length (B5):

76,2 mm

Functional length (B71):

76,2 mm

Neck length (B9):

28,575

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0250

Connection diameter machine side (C3):

6,35 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

56 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,035 kg

Rake angle radial (E2):

10,5 °

Rake angle axial (E3):

13,5 °

Ramping angle maximum (E4):

6 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

45 °

Corner chamfer width (G2):

0,1 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TAX

Body material code (H4):

Coating (H5):

TiAlN

Standard (J1):

LONG

Data chip provision (J7):
