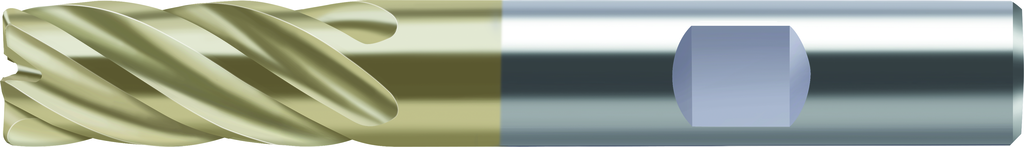

3/4" Solid carbide shoulder/slot milling cutter AH4137217-3/4-0.030

€

344.25

EX VAT

€

423.43

INC VAT

Walter Prototyp

Solid carbide shoulder/slot milling cutter AH4137217 • Proto max • DIN 6535 HB shank • inch • flute helix angle 35° • TAZ • Dc=19,05mm • R=0,76mm • Z=5

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) AH4137217-3/4-0.03

Cutting edge diameter (D c) 3/4" Inch_No_Let

Corner radius (r) 0,03 inch

Cutting edge length (L c) 1,5 inch

Overall length (l 1) 4 inch

Functional length (l 4) 1,969 inch

Shank diameter (d 1) 0,75 inch

Number of teeth (Z) 5

Insert Shape AH

DESCRIPTION & FEATURES

Solid carbide shoulder/slot milling cutter AH4137217 • Proto max • DIN 6535 HB shank • inch • flute helix angle 35° • TAZ • Dc=19,05mm • R=0,76mm • Z=5

Article number (J21):

AH4137217-3/4-0.030

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

19,05 mm

Depth of cut maximum (B2):

38,1 mm

Protruding length (B3):

50 mm

Overall length (B5):

101,6 mm

Functional length (B71):

75,803 mm

Neck length (B9):

38,1

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0750

Connection diameter machine side (C3):

19,05 mm

ISO-tolerance class shank diameter (C31):

Rotational speed maximum (D6):

73260 1/min

Weight of item (D7):

0,345 kg

Rake angle radial (E2):

10,5 Â°
