2mm Solid carbide shoulder/slot milling cutter MC377-02.0A3B020C-WK40EA

2mm Solid carbide shoulder/slot milling cutter MC377-02.0A3B020C-WK40EA

€

51.23

EX VAT

€

63.01

INC VAT

Walter Prototyp

2 mm Solid carbide shoulder/slot milling cutter MC377 • Advance • DIN 6535 HA shank • metric • flute helix angle 40° • Long reach • Type Ti 40 • centre cutting capability • WK40EA • Dc=2mm • R=0.2mm • Z=3

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

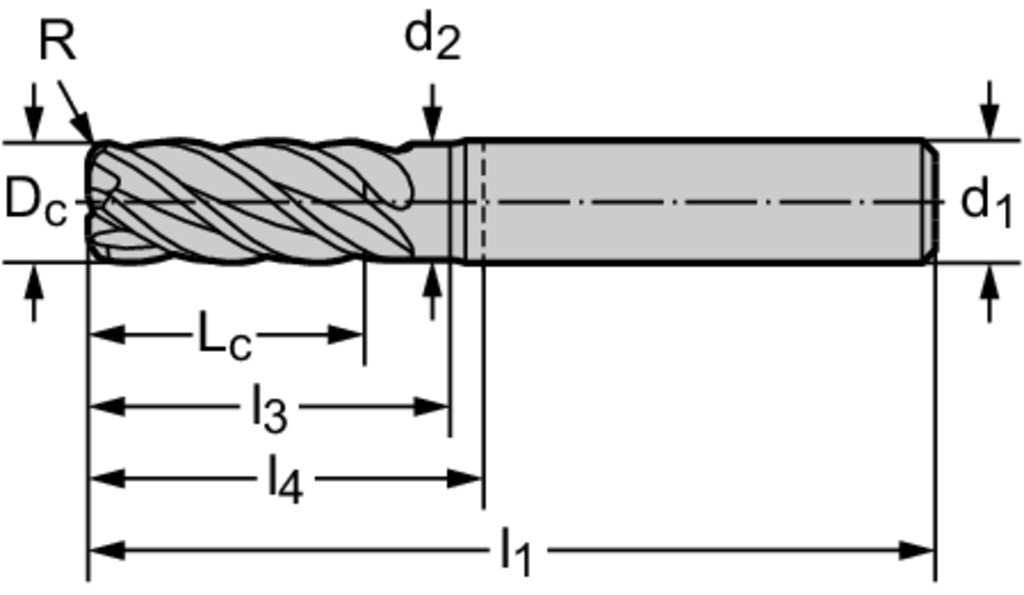

PRODUCT ATTRIBUTES

Tool designation (Designation) MC377-02.0A3B020C-WK40EA

Cutting edge diameter (D c) 2 mm

Corner radius (r) 0.2 mm

Cutting edge length (L c) 6 mm

Useable length (l 3) 9,5 mm

Neck diameter (d 2) 1,9 mm

Overall length (l 1) 57 mm

Functional length (l 4) 21 mm

Shank diameter (d 1) 6 mm

Number of teeth (Z) 3

Insert Shape MC

DESCRIPTION & FEATURES

Article number (J21):

MC377-02.0A3B020C-WK40EA

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

2 mm

Neck diameter (A5):

1,92 mm

Depth of cut maximum (B2):

6 mm

Protruding length (B3):

21 mm

Overall length (B5):

57 mm

Functional length (B71):

57 mm

Neck length (B9):

9,5

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min
