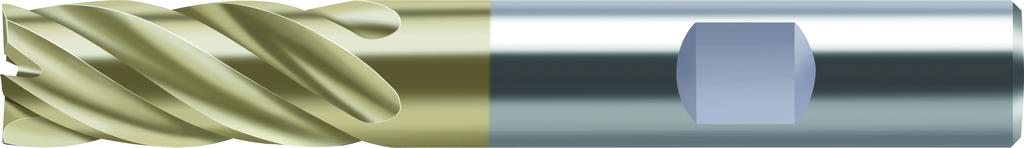

Solid carbide shoulder/slot milling cutter AH4135217-5/8

Solid carbide shoulder/slot milling cutter AH4135217-5/8

€

273.00

EX VAT

€

335.79

INC VAT

Walter Prototyp

Solid carbide shoulder/slot milling cutter AH4135217-5/8

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

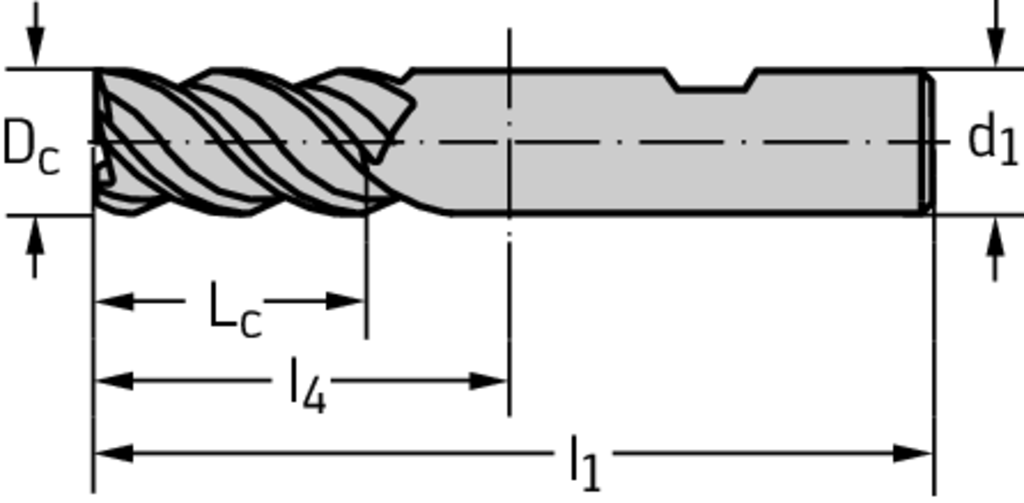

Tool designation (Designation) AH4135217-5/8

Cutting edge diameter (D c) 5/8" Inch_No_Let

Cutting edge length (L c) 1,25 inch

Overall length (l 1) 3,5 inch

Functional length (l 4) 1,595 inch

Shank diameter (d 1) 0,625 inch

Number of teeth (Z) 5

Insert Shape AH

DESCRIPTION & FEATURES

Solid carbide shoulder/slot milling cutter AH4135217 • Proto max • DIN 6535 HB shank • inch • flute helix angle 35° • TAZ • Dc=15,88mm • Z=5

Article number (J21):

AH4135217-5/8

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

15,875 mm

Depth of cut maximum (B2):

31,75 mm

Protruding length (B3):

40,5 mm

Overall length (B5):

88,9 mm

Functional length (B71):

64,691 mm

Neck length (B9):

31,75

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0625

Connection diameter machine side (C3):

15,875 mm

ISO-tolerance class shank diameter (C31):

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,216 kg

Rake angle radial (E2):

10,5 °

Rake angle axial (E3):

4 °

Ramping angle maximum (E4):

6 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

35 °

Corner chamfer width (G2):

0,3 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TAZ

Body material code (H4):

Coating (H5):

AlTiN + ZrN

Standard (J1):

STANDARD

Standard letter to the standard number (J11):

Data chip provision (J7):

Solid carbide shoulder/slot milling cutter AH4135217-5/8
