Solid carbide shoulder/slot milling cutter MC388-04.0A3B-WB10TG

Solid carbide shoulder/slot milling cutter MC388-04.0A3B-WB10TG

€

46.20

EX VAT

€

56.83

INC VAT

Walter Prototyp

Solid carbide shoulder/slot milling cutter MC388-04.0A3B-WB10TG

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

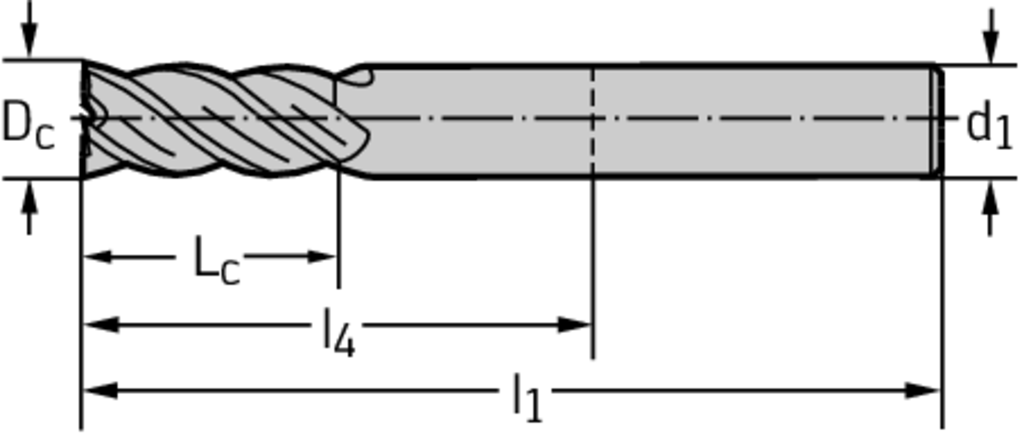

Tool designation (Designation) MC388-04.0A3B-WB10TG

Cutting edge diameter (D c) 4 mm

Cutting edge length (L c) 11 mm

Overall length (l 1) 57 mm

Functional length (l 4) 21 mm

Shank diameter (d 1) 6 mm

Number of teeth (Z) 3

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder/slot milling cutter MC388 • Advance • DIN 6535 HA shank • metric • flute helix angle 50° • centre cutting capability • WB10TG • Dc=4mm • Z=3

Article number (J21):

MC388-04.0A3B-WB10TG

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

4 mm

Neck diameter (A5):

4,05 mm

Depth of cut maximum (B2):

11 mm

Protruding length (B3):

21 mm

Overall length (B5):

57 mm

Functional length (B71):

57 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,023 kg

Rake angle radial (E2):

-18 °

Rake angle axial (E3):

1,5 °

Ramping angle maximum (E4):

10 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

50 °

Corner chamfer width (G2):

0,1 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WB10TG

Body material code (H4):

Coating (H5):

TiAlSiN

Standard (J1):

DIN 6527 L

Standard letter to the standard number (J11):

Data chip provision (J7):
