Solid carbide shoulder/slot mills MD266-20.0A2LC-WJ30UU

Solid carbide shoulder/slot mills MD266-20.0A2LC-WJ30UU

€

312.00

EX VAT

€

383.76

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills MD266-20.0A2LC-WJ30UU

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

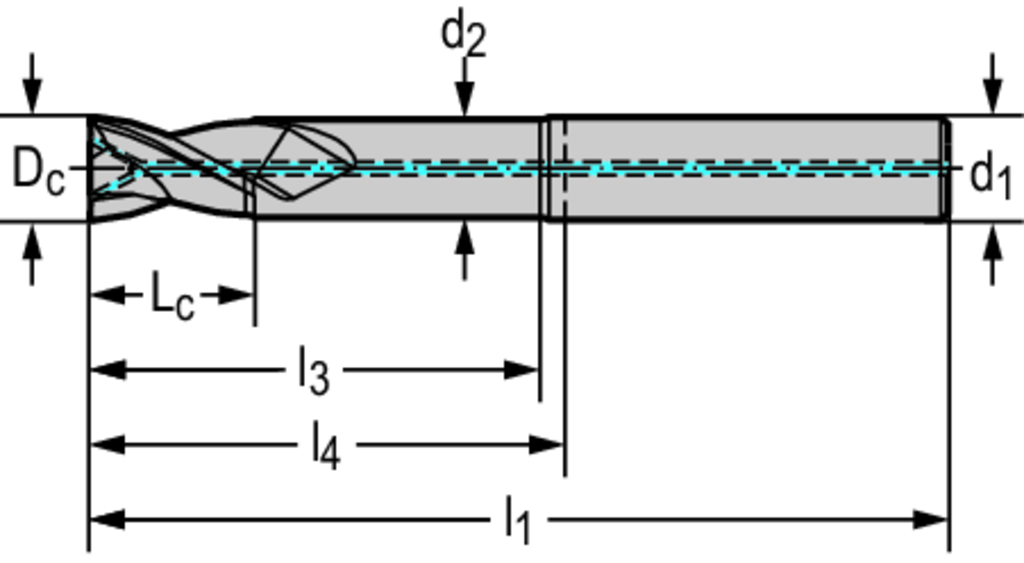

PRODUCT ATTRIBUTES

Tool designation (Designation) MD266-20.0A2LC-WJ30UU

Cutting edge diameter (D c) 20 mm

Cutting edge length (L c) 25 mm

Useable length (l 3) 73 mm

Neck diameter (d 2) 19 mm

Overall length (l 1) 125 mm

Functional length (l 4) 74 mm

Shank diameter (d 1) 20 mm

Number of teeth (Z) 2

Insert Shape MD

DESCRIPTION & FEATURES

Solid carbide shoulder/slot mills MD266 • Supreme • DIN 6535 HA shank • metric • flute helix angle 30° • Long reach • centre cutting capability • WJ30UU • Dc=20mm • Z=2

Article number (J21):

MD266-20.0A2LC-WJ30UU

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

20 mm

Neck diameter (A5):

19 mm

Depth of cut maximum (B2):

25 mm

Protruding length (B3):

74 mm

Overall length (B5):

125 mm

Functional length (B71):

125 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0200

Connection diameter machine side (C3):

20 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

50 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,48 kg

Rake angle radial (E2):

10 °

Rake angle axial (E3):

5 °

Ramping angle maximum (E4):

30 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

30 °

Corner chamfer width (G2):

0,15 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30UU

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

P-NORM L

Standard letter to the standard number (J11):

Data chip provision (J7):

Solid carbide shoulder/slot mills MD266-20.0A2LC-WJ30UU
