Solid carbide shoulder/slot mills H4033217-10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

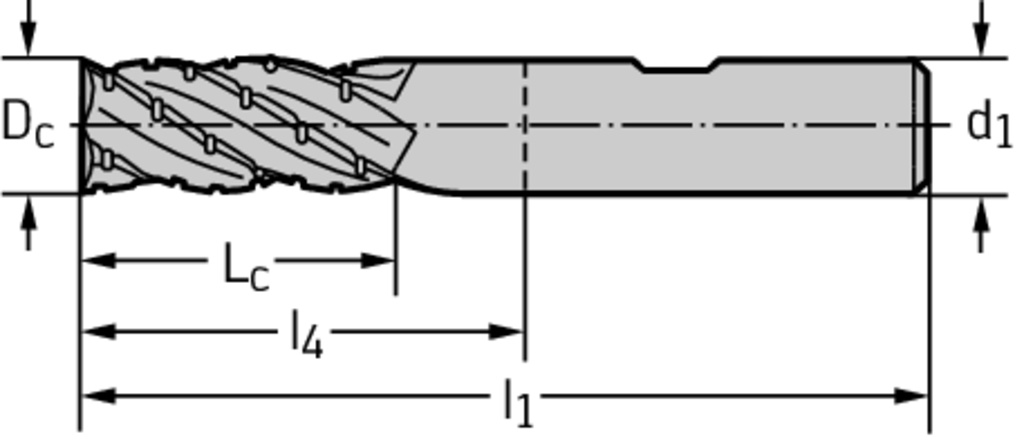

Tool designation (Designation) H4033217-10

Cutting edge diameter (D c) 10 mm

Cutting edge length (L c) 22 mm

Useable length (l 3) 30 mm

Neck diameter (d 2) 9,5 mm

Overall length (l 1) 72 mm

Functional length (l 4) 32 mm

Shank diameter (d 1) 10 mm

Number of teeth (Z) 3

Insert Shape H4

DESCRIPTION & FEATURES

Solid carbide shoulder/slot mills H4033217 • Proto max • DIN 6535 HA shank • metric • flute helix angle 45° • Long reach • centre cutting capability • TAZ • Dc=10mm • Z=3

Article number (J21):

H4033217-10

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

10 mm

Neck diameter (A5):

9,5 mm

Depth of cut maximum (B2):

22 mm

Protruding length (B3):

32 mm

Overall length (B5):

72 mm

Functional length (B71):

72 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

40 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,078 kg

Rake angle radial (E2):

4 °

Rake angle axial (E3):

3,5 °

Ramping angle maximum (E4):

10 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

45 °

Corner chamfer width (G2):

0,1 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

TAZ

Body material code (H4):

Coating (H5):

AlTiN + ZrN

Standard (J1):

PWZ-NORM

Standard letter to the standard number (J11):

Data chip provision (J7):
