Solid carbide shoulder/slot mills MC232-02.5A2B-WJ30ED

Solid carbide shoulder/slot mills MC232-02.5A2B-WJ30ED

€

18.22

EX VAT

€

22.41

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills MC232-02.5A2B-WJ30ED

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

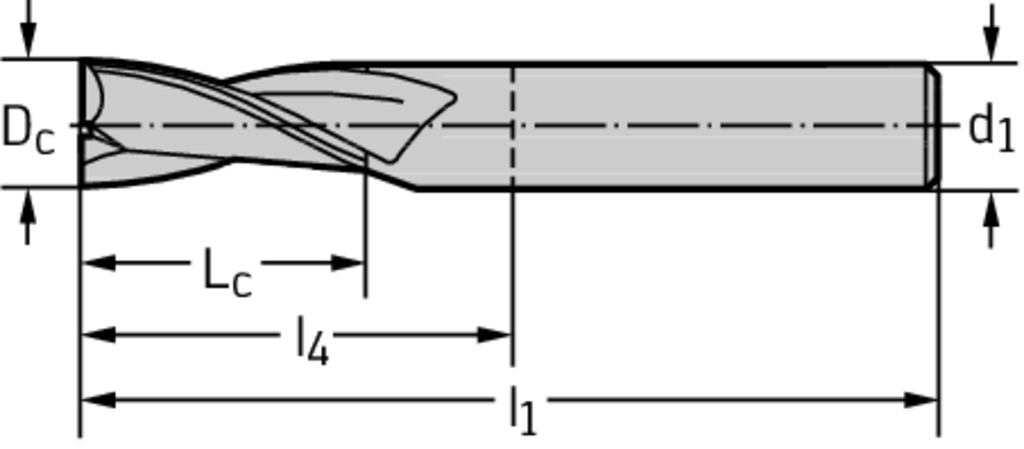

Tool designation (Designation) MC232-02.5A2B-WJ30ED

Cutting edge diameter (D c) 2.5 mm

Cutting edge length (L c) 7 mm

Overall length (l 1) 57 mm

Functional length (l 4) 29 mm

Shank diameter (d 1) 4 mm

Number of teeth (Z) 2

Insert Shape MC

DESCRIPTION & FEATURES

Solid carbide shoulder/slot mills MC232 • Perform • DIN 6535 HA shank • metric • flute helix angle 35° • centre cutting capability • WJ30ED • Dc=2,5mm • Z=2

Article number (J21):

MC232-02.5A2B-WJ30ED

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

2,5 mm

Neck diameter (A5):

2,55 mm

Depth of cut maximum (B2):

7 mm

Protruding length (B3):

29 mm

Overall length (B5):

57 mm

Functional length (B71):

57 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0040

Connection diameter machine side (C3):

4 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

28 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,014 kg

Rake angle radial (E2):

8 °

Rake angle axial (E3):

4 °

Ramping angle maximum (E4):

30 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

35 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30ED

Body material code (H4):

Coating (H5):

AlCrSiN

Standard (J1):

DIN 6527 L

Standard letter to the standard number (J11):

Data chip provision (J7):
