Solid carbide shoulder/slot mills H6E2211-E12-12

Solid carbide shoulder/slot mills H6E2211-E12-12

€

60.75

EX VAT

€

74.72

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills H6E2211-E12-12

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

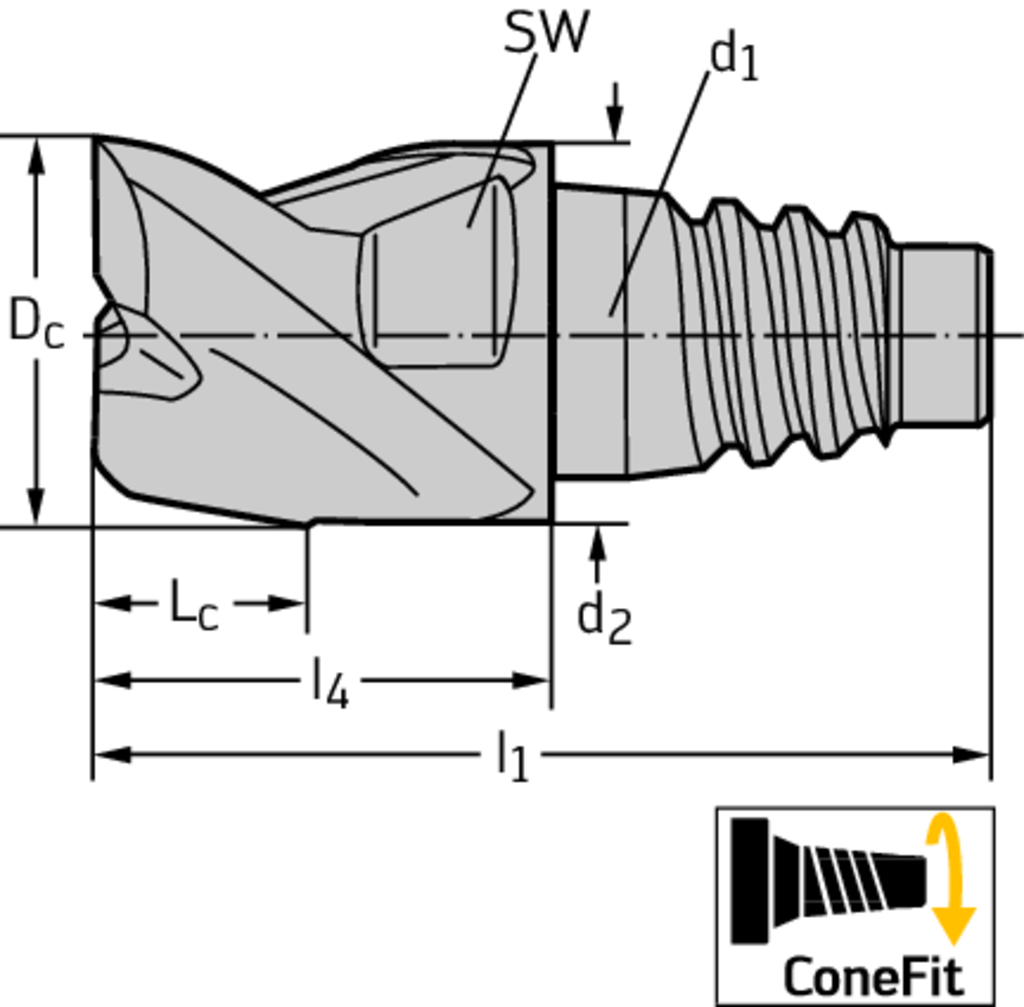

Tool designation (Designation) H6E2211-E12-12

Cutting edge diameter (D c) 12 mm

Cutting edge length (L c) 6,5 mm

Neck diameter (d 2) 11,7 mm

Overall length (l 1) 28,3 mm

Functional length (l 4) 14,5 mm

Wrench size (SW) 10 mm

Shank diameter (d 1) E12 mm

Number of teeth (Z) 3

Insert Shape H6

DESCRIPTION & FEATURES

Solid carbide shoulder/slot mills H6E2211 • Protostar • ConeFit • metric • flute helix angle 45° • Type Al 45 • centre cutting capability • Dc=12mm • Z=3

Article number (J21):

H6E2211-E12-12

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12 mm

Neck diameter (A5):

11,7 mm

Depth of cut maximum (B2):

6,5 mm

Protruding length (B3):

14,5 mm

Overall length (B5):

28,3 mm

Functional length (B71):

14,5 mm

Neck length (B9):

14,5

Connection code type machine side (C11):

SAC

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0120

Connection diameter machine side (C3):

11,7 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,029 kg

Rake angle radial (E2):

13,5 °

Rake angle axial (E3):

13,5 °

Ramping angle maximum (E4):

20 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Flute helix hand (F3):

Flute helix angle (F4):

45 °

Corner chamfer width (G2):

0,1 mm

Corner chamfer angle (G3):

45 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

PWZ-NORM

Data chip provision (J7):
