12mm Solid carbide shoulder/slot mills H4138217-12-0.5

12mm Solid carbide shoulder/slot mills H4138217-12-0.5

€

146.30

EX VAT

€

179.95

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills H4138217 • Proto max • DIN 6535 HB shank • metric • flute helix angle 50° • Long reach • centre cutting capability • TAZ • Dc=12mm • R=0,5mm • Z=4

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

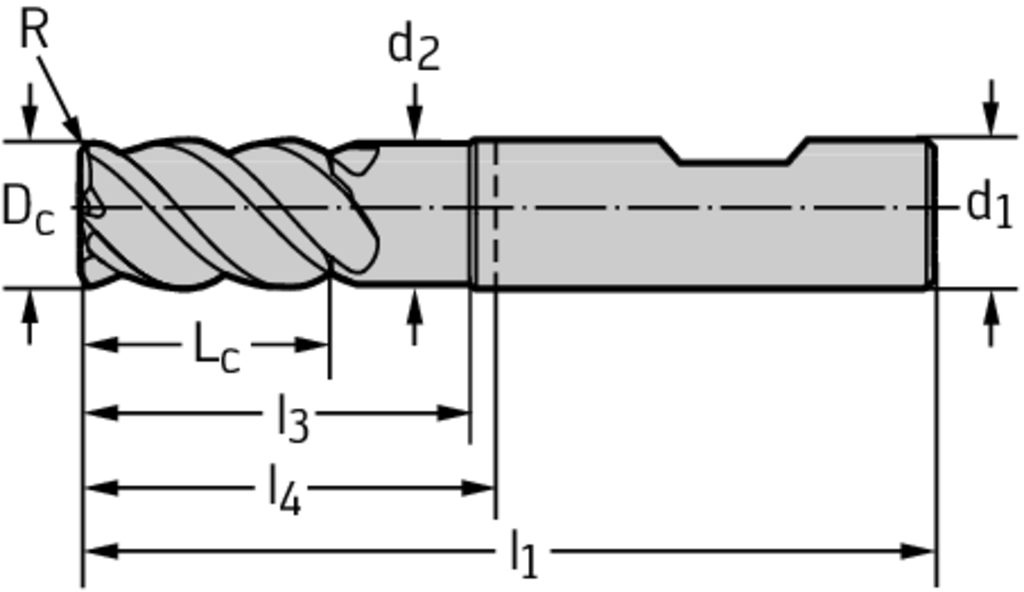

Tool designation (Designation) H4138217-12-0.5

Cutting edge diameter (D c) 12 mm

Corner radius (r) 0.5 mm

Cutting edge length (L c) 19 mm

Useable length (l 3) 33 mm

Neck diameter (d 2) 11,4 mm

Overall length (l 1) 83 mm

Functional length (l 4) 38 mm

Shank diameter (d 1) 12 mm

Number of teeth (Z) 4

Insert Shape H4

DESCRIPTION & FEATURES

Article number (J21):

H4138217-12-0.5

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

12 mm

Neck diameter (A5):

11,4 mm

Depth of cut maximum (B2):

19 mm

Protruding length (B3):

38 mm

Overall length (B5):

83 mm

Functional length (B71):

60,5 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0120

Connection diameter machine side (C3):

12 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

45 mm

Rotational speed maximum (D6):

80000 1/min
