5mm Solid carbide shoulder/slot mills MC213-05.0A2L050C-WJ30TF

5mm Solid carbide shoulder/slot mills MC213-05.0A2L050C-WJ30TF

€

50.70

EX VAT

€

62.36

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills MC213 • Advance • DIN 6535 HA shank • metric • flute helix angle 30° • Long reach • Type HSC 30, long • centre cutting capability • WJ30TF • Dc=5mm • R=0,5mm • Z=2

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

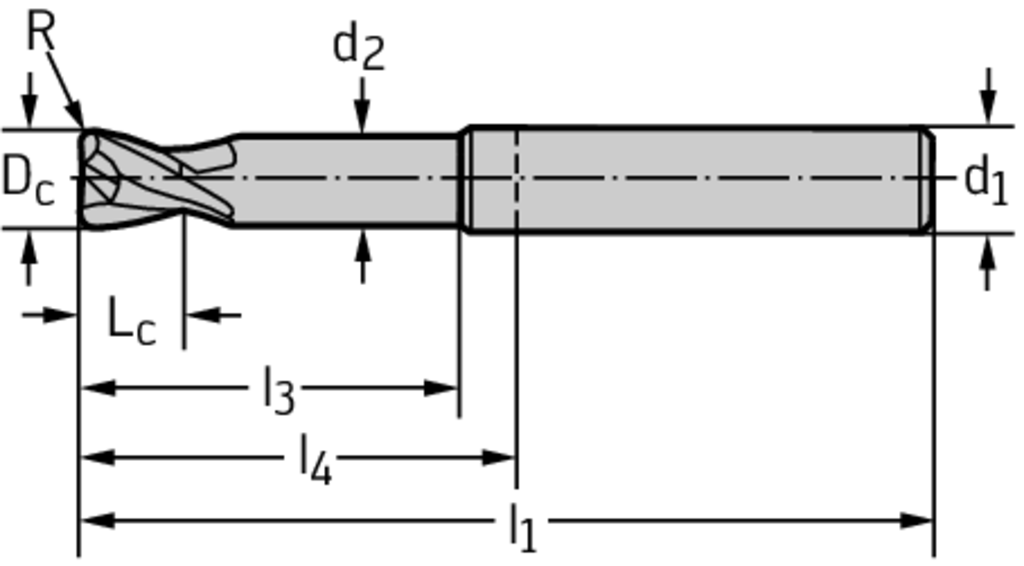

PRODUCT ATTRIBUTES

Tool designation (Designation) MC213-05.0A2L050C-WJ30TF

Cutting edge diameter (D c) 5 mm

Corner radius (r) 0.5 mm

Cutting edge length (L c) 5 mm

Useable length (l 3) 20 mm

Neck diameter (d 2) 4,8 mm

Overall length (l 1) 72 mm

Functional length (l 4) 36 mm

Shank diameter (d 1) 6 mm

Number of teeth (Z) 2

Insert Shape MC

DESCRIPTION & FEATURES

Article number (J21):

MC213-05.0A2L050C-WJ30TF

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

5 mm

Neck diameter (A5):

4,75 mm

Depth of cut maximum (B2):

5 mm

Protruding length (B3):

36 mm

Overall length (B5):

72 mm

Functional length (B71):

72 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Rotational speed maximum (D6):

80000 1/min
