25mm Solid carbide shoulder/slot mills H602311-25

25mm Solid carbide shoulder/slot mills H602311-25

€

487.00

EX VAT

€

599.01

INC VAT

Walter Prototyp

Solid carbide shoulder/slot mills H602311 • Protostar • DIN 6535 HA shank • metric • flute helix angle 45° • Long reach • Type Al 45 • centre cutting capability • Dc=25mm • R=0,5mm • Z=3

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

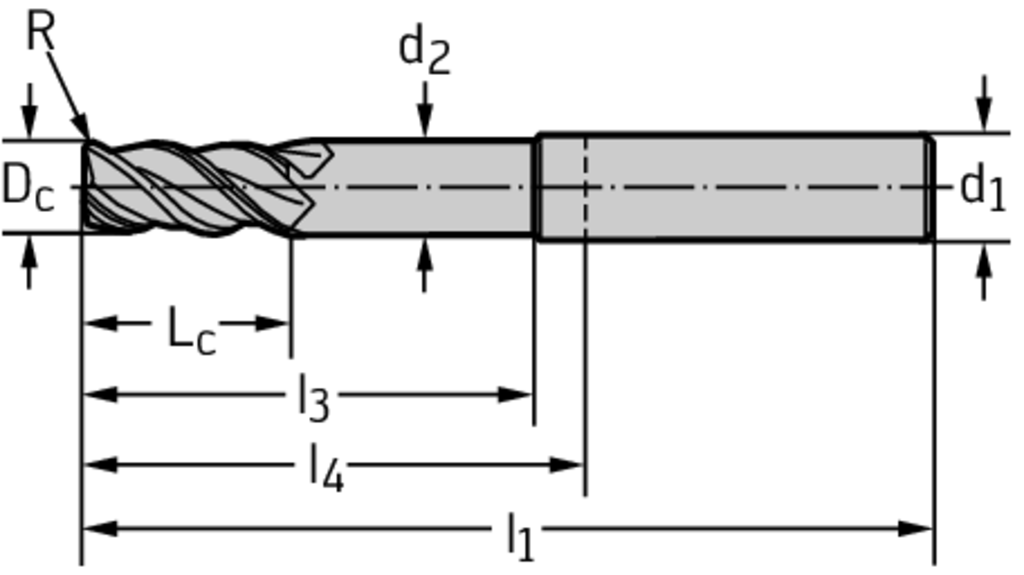

PRODUCT ATTRIBUTES

Tool designation (Designation) H602311-25

Cutting edge diameter (D c) 25 mm

Corner radius (r) 0.5 mm

Cutting edge length (L c) 45 mm

Useable length (l 3) 63 mm

Neck diameter (d 2) 23,8 mm

Overall length (l 1) 121 mm

Functional length (l 4) 65 mm

Shank diameter (d 1) 25 mm

Number of teeth (Z) 3

Insert Shape H6

DESCRIPTION & FEATURES

Article number (J21):

H602311-25

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

Tool style code (BLD):

Cutting diameter (A1):

25 mm

Neck diameter (A5):

23,75 mm

Depth of cut maximum (B2):

45 mm

Protruding length (B3):

65 mm

Overall length (B5):

121 mm

Functional length (B71):

121 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code style machine side (C15):

Connection size code machine side (C2):

0250

Connection diameter machine side (C3):

25 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

56 mm

Rotational speed maximum (D6):

80000 1/min
