14mm Solid carbide shoulder/slot mills MC326-14.0W4B300-WK40TF14mm Solid carbide shoulder/slot mills MC326-14.0W4B300-WK40TF
14mm Solid carbide shoulder/slot mills MC326-14.0W4B300-WK40TF 14mm Solid carbide shoulder/slot mills MC326-14.0W4B300-WK40TF

14mm Solid carbide shoulder/slot mills MC326-14.0W4B300-WK40TF

€
169.60
EX VAT
€
208.61
INC VAT
Walter Prototyp
Solid carbide shoulder/slot mills MC326 • Supreme • DIN 6535 HB shank • metric • flute helix angle 50° • Type N 50 • centre cutting capability • WK40TF • Dc=14mm • R=3mm • Z=4
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

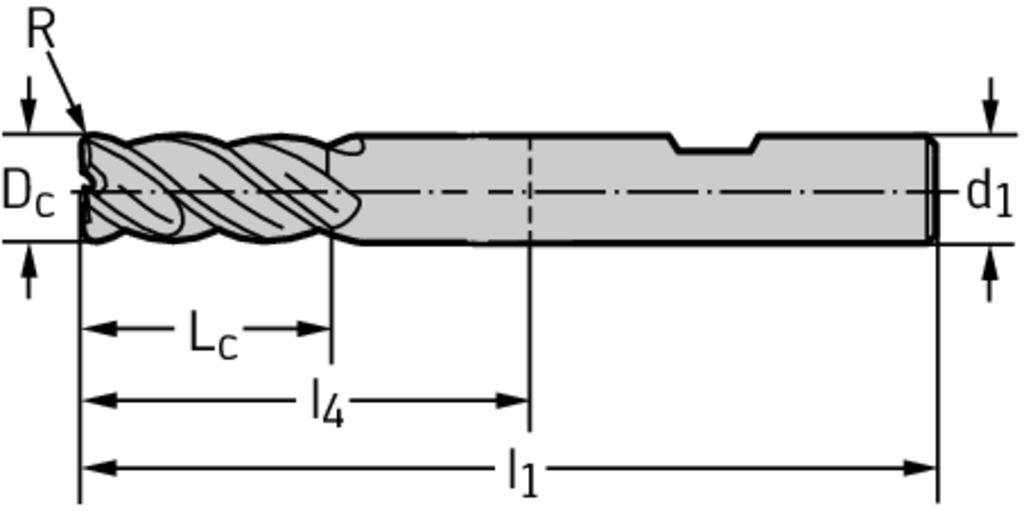

Tool designation (Designation) MC326-14.0W4B300-WK40TF
Cutting edge diameter (D c) 14 mm
Corner radius (r) 3 mm
Cutting edge length (L c) 26 mm
Overall length (l 1) 83 mm
Functional length (l 4) 38 mm
Shank diameter (d 1) 14 mm
Number of teeth (Z) 4
Insert Shape MC
DESCRIPTION & FEATURES
Solid carbide shoulder/slot mills MC326 • Supreme • DIN 6535 HB shank • metric • flute helix angle 50° • Type N 50 • centre cutting capability • WK40TF • Dc=14mm • R=3mm • Z=4
Article number (J21):
MC326-14.0W4B300-WK40TF
Standard number of properties layout (NSM):
DIN4000-82
Company code (J3):
W
Tool style code (BLD):
2
Cutting diameter (A1):
14 mm
Depth of cut maximum (B2):
26 mm
Protruding length (B3):
38 mm
Overall length (B5):
83 mm
Functional length (B71):
60,5 mm
Neck length (B9):
26
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
10
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0140
Connection diameter machine side (C3):
14 mm
ISO-tolerance class shank diameter (C31):
h5
Shank length (C4):
45 mm
Rotational speed maximum (D6):
80000 1/min
Weight of item (D7):
0,173 kg
