Solid carbide single-piece boring bar for precision boring EB554.CSSolid carbide single-piece boring bar for precision boring EB554.CS
Solid carbide single-piece boring bar for precision boring EB554.CS Solid carbide single-piece boring bar for precision boring EB554.CS

Solid carbide single-piece boring bar for precision boring EB554.CS

€
443.00
EX VAT
€
544.89
INC VAT
Walter
Solid carbide single-piece boring bar for precision boring EB554.CS
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

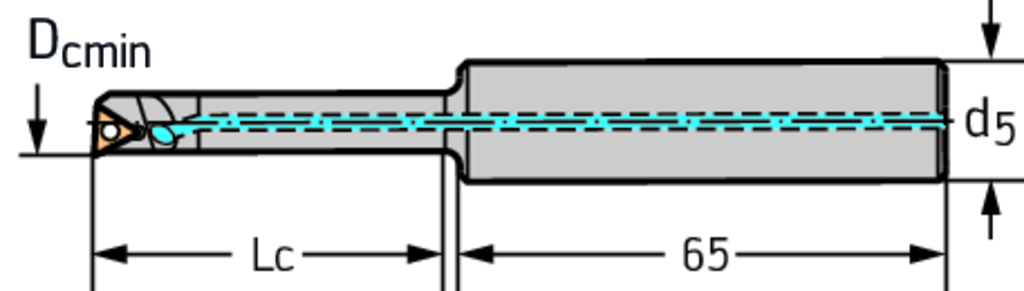

Tool designation (Designation) EB554.CS
Minimum cutting diameter (D cmin) 11,8 mm
Connection diameter (d 1) 16 mm
Functional width (f) 5,9 mm
Clamping length (l 5) 64 mm
Cutting edge length (L c) 62,5 mm
Overall length (l 1) 126,5 mm
Insert Shape EB
DESCRIPTION & FEATURES
Solid carbide single-piece boring bar for precision boring EB100 • Dc min=11,8mm • TC .. 1102 ..
Article number (J21):
EB554.CS
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-90
Tool style code (BLD):
1
Cutting edge length (A1):
11 mm
Functional width (A2):
5,9 mm
Functional length (A3):
126,5 mm
Functional height (A4):
0 mm
Minimum bore diameter (A6):
11,8 mm
Overall length (B5):
126,5 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
16 mm
Weight of item (D7):
0,22 kg
Tool cutting edge angle (E1):
93 °
Tool cutting edge angle type code (E2):
S
Insert included angle (E3):
60 °
Rake angle orthogonal (E4):
0 °
Inclination angle (E5):
0 °
Cutting direction (F1):
Right
Clamping type code (F5):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Master insert identification (J42):
TCMT 11 02 04
Data chip provision (J7):
0
Protruding length (LPR):
62,5 mm
