Solid carbide single-piece boring bar for precision XT EB701.WKP21

Solid carbide single-piece boring bar for precision XT EB701.WKP21

€

37.70

EX VAT

€

46.37

INC VAT

Walter

Solid carbide single-piece boring bar for precision XT EB701.WKP21

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

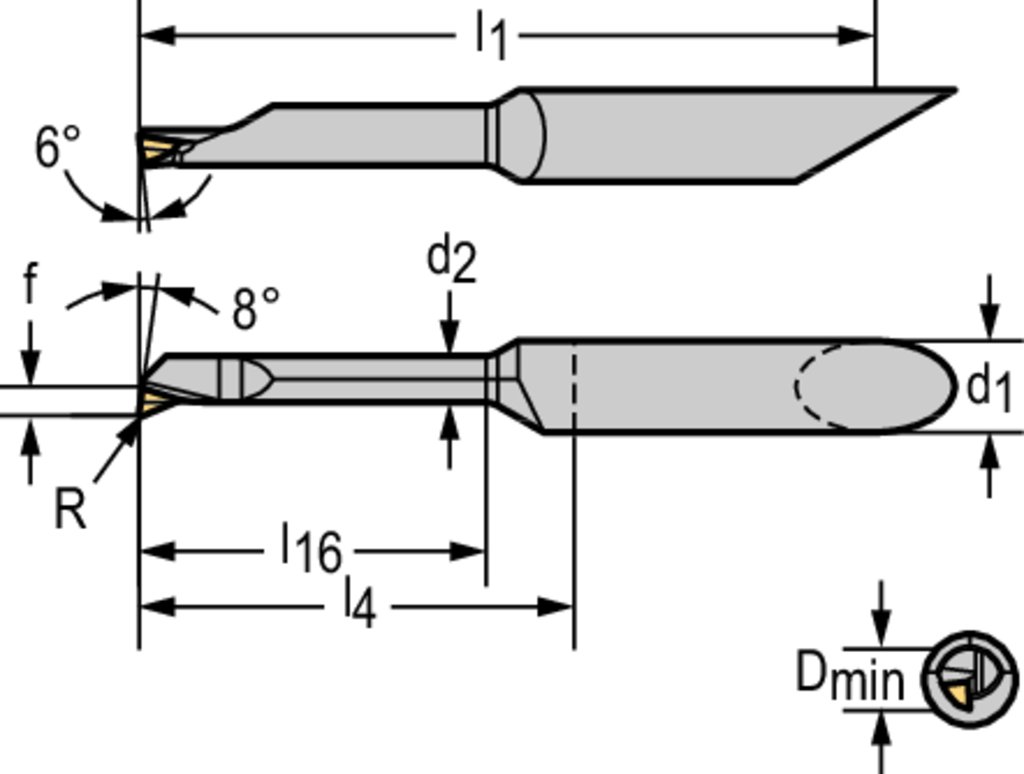

PRODUCT ATTRIBUTES

Tool designation (Designation) EB701.WKP21

Minimum cutting diameter (D cmin) 1 mm

Connection diameter (d 1) 4 mm

Functional width (f) 0,5 mm

Clamping length (l 5) 18,71 mm

Cutting edge length (L c) 12 mm

Overall length (l 1) 30,71 mm

Insert Shape EB

DESCRIPTION & FEATURES

Solid carbide single-piece boring bar for precision XT EB700 EB701.WKP21

Article number (J21):

EB701.WKP21

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-90

Tool style code (BLD):

Functional width (A2):

0,45 mm

Functional length (A3):

27,25 mm

Functional height (A4):

0 mm

Minimum bore diameter (A6):

1 mm

Overall length (B5):

30,71 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0040

Connection diameter machine side (C3):

4 mm

Weight of item (D7):

0,005 kg

Tool cutting edge angle (E1):

98 °

Rake angle orthogonal (E4):

0 °

Inclination angle (E5):

0 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):

Protruding length (LPR):

12 mm

Neck length (NECK_LENGTH):
