Solid carbide thread milling cutters H5033008-M10

Solid carbide thread milling cutters H5033008-M10

Solid carbide thread milling cutters H5033008-M10

Solid carbide thread milling cutters H5033008-M10

Solid carbide thread milling cutters H5033008-M10

€

408.00

EX VAT

€

501.84

INC VAT

Walter Prototyp

Solid carbide thread milling cutters H5033008-M10

P

H

M

S

K

N

O

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

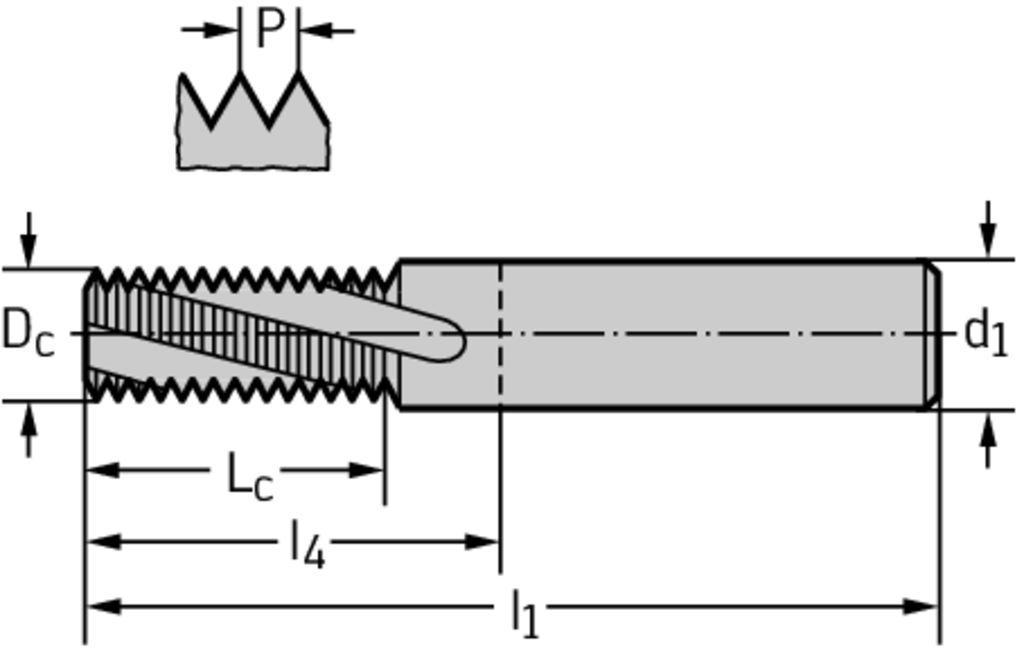

Tool designation (Designation) H5033008-M10

Thread size (D N) M 10

Thread pitch (P) 1,5 mm

Cutting edge diameter (D c) 8 mm

Cutting edge length (L c) 16,5 mm

Overall length (l 1) 63 mm

Functional length (l 4) 27 mm

Connection diameter (d 1) 8 mm

Number of teeth (Z) 5

DESCRIPTION & FEATURES

Solid carbide thread milling cutters • TMG HRC • M60 • TAX • ≤1,5xD • DIN 6535 HA shank • P=1,5mm • Dc=8mm

Article number (J21):

H5033008-M10

Standard number of properties layout (NSM):

DIN4000-82

Company code (J3):

W

Tool style code (BLD):

10

Cutting diameter maximum (A2):

8 mm

Depth of cut maximum (B2):

16,5 mm

Protruding length (B3):

27 mm

Overall length (B5):

63 mm

Functional length (B71):

63 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

01

Connection code unit base machine side (C14):

0

Connection code style machine side (C15):

5

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

h6

Shank length (C4):

36 mm

Thread form type (D31):

M60

Thread pitch (D32):

1,5 mm

Rotational speed maximum (D6):

80000 1/min

Weight of item (D7):

0,048 kg

Rake angle radial (E2):

-9 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

5

Flute helix hand (F3):

R

Flute helix angle (F4):

10 °

Coolant entry style code (H21):

0

Coolant exit style code (H22):

0

Grade manufacturer's designation (H3):

TAX

Body material code (H4):

H

Coating (H5):

TiAlN

Standard (J1):

DIN6535

Standard letter to the standard number (J11):

HA

Data chip provision (J7):

0
