Solid carbide twist drill DC175-05-03.400A1-WJ30RZ

Solid carbide twist drill DC175-05-03.400A1-WJ30RZ

€

127.80

EX VAT

€

157.19

INC VAT

Walter Titex

Solid carbide twist drill DC175-05-03.400A1-WJ30RZ

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

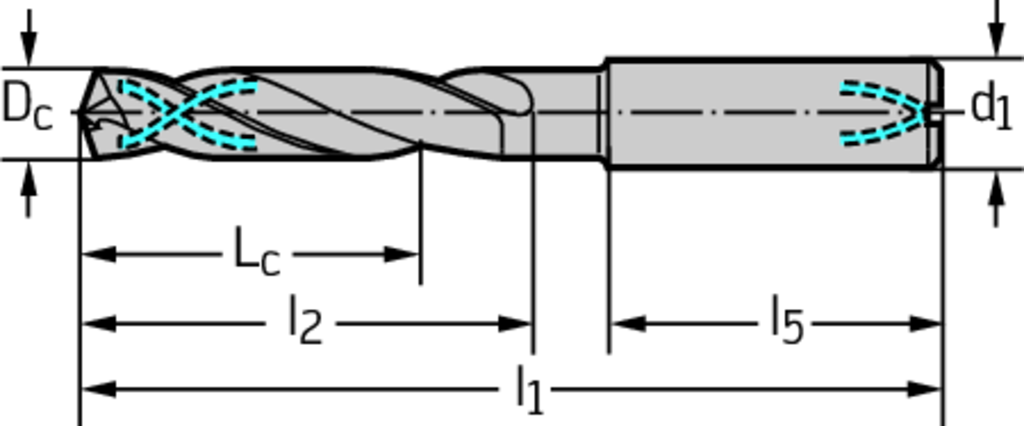

Tool designation (Designation) DC175-05-03.400A1-WJ30RZ

Cutting edge diameter (D c) 3.4 mm

Cutting edge length (L c) 19 mm

Overall length (l 1) 66 mm

Projection length (l 2) 24 mm

Shank length (l 5) 36 mm

Shank diameter (d 1) 6 mm

Insert Shape DC

DESCRIPTION & FEATURES

Solid carbide twist drill DC175 • Supreme • 5xD • DIN 6535 HA shank • point angle 140° • WJ30RZ • Dc=3,4mm

Article number (J21):

DC175-05-03.400A1-WJ30RZ

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

3,4 mm

Protruding length (B3):

30 mm

Usable length (B4):

19 mm

Overall length (B5):

66 mm

Length chip flute (B6):

24 mm

Point length (B7):

0,619 mm

Functional length (B71):

65,381 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,017 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30RZ

Body material code (H4):

Standard (J1):

TP-NORM 33N

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Through Coolant
