Solid carbide twist drills DC150-03-02.300U0-WJ30RE

Solid carbide twist drills DC150-03-02.300U0-WJ30RE

€

26.46

EX VAT

€

32.55

INC VAT

Walter Titex

Solid carbide twist drills DC150-03-02.300U0-WJ30RE

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

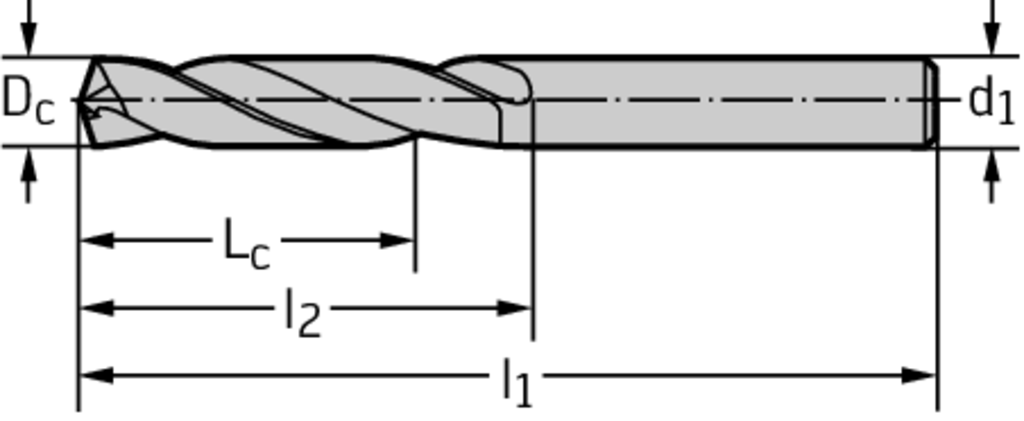

Tool designation (Designation) DC150-03-02.300U0-WJ30RE

Cutting edge diameter (D c) 2.3 mm

Cutting edge length (L c) 9 mm

Overall length (l 1) 40 mm

Projection length (l 2) 13 mm

Shank diameter (d 1) 2,3 mm

Insert Shape DC

DESCRIPTION & FEATURES

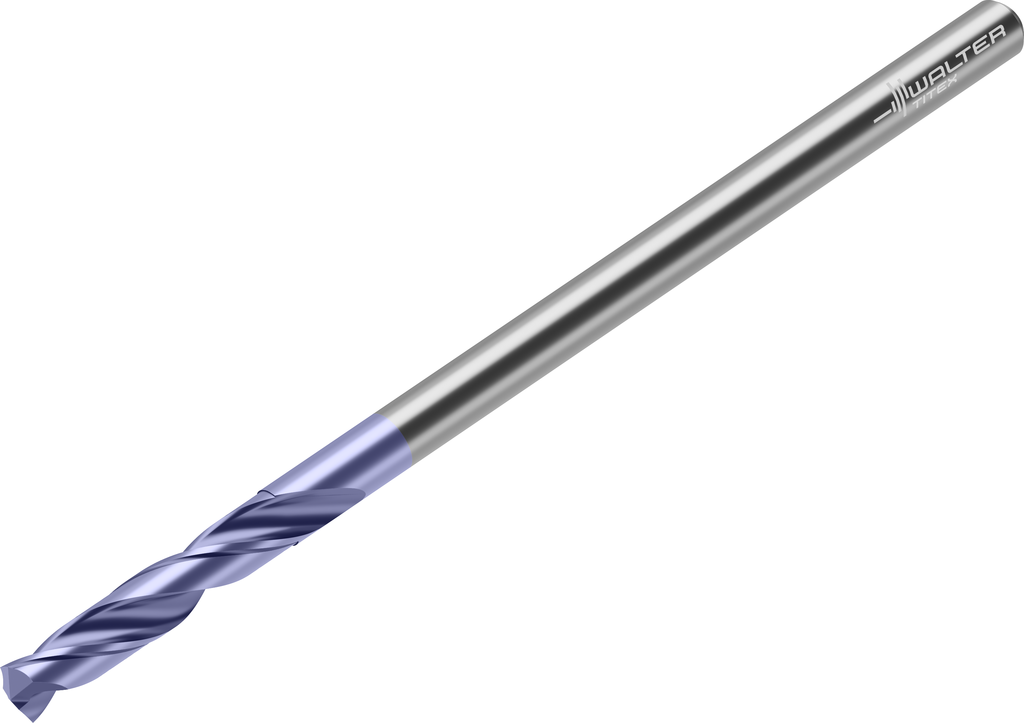

Solid carbide twist drills DC150 • Perform • DIN 6539 • 3xD • Cylindrical shank • point angle 140° • Dc=2,3mm

Article number (J21):

DC150-03-02.300U0-WJ30RE

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

2,3 mm

Protruding length (B3):

14,149 mm

Usable length (B4):

9 mm

Overall length (B5):

40 mm

Length chip flute (B6):

13 mm

Point length (B7):

0,419 mm

Functional length (B71):

39,58 mm

Neck length (B9):

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0023

Connection diameter machine side (C3):

2,3 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

25,85 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,002 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30RE

Body material code (H4):

Coating (H5):

TiNAl

Standard (J1):

DIN 6539

Data chip provision (J7):

Coolant Type:

Without Through Coolant
