Solid carbide twist drills DC160-05-04.100A0-WJ30ET

Solid carbide twist drills DC160-05-04.100A0-WJ30ET

€

69.45

EX VAT

€

85.42

INC VAT

Walter Titex

Solid carbide twist drills DC160-05-04.100A0-WJ30ET

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

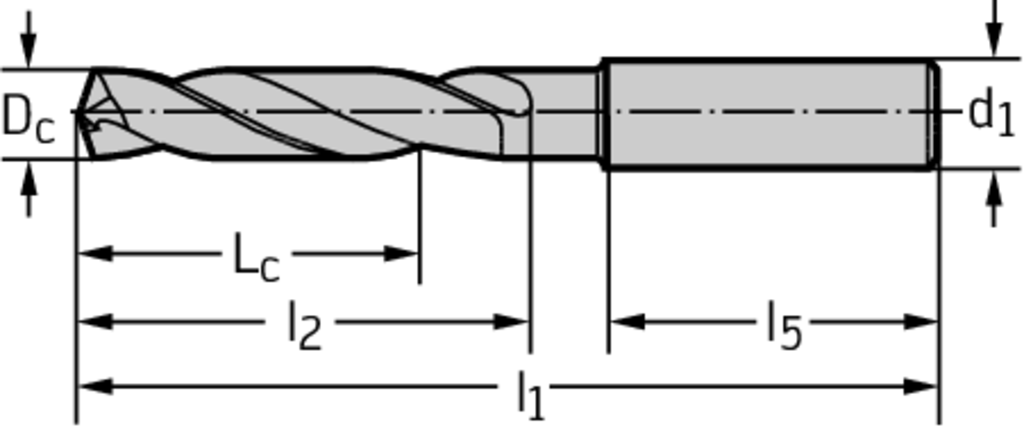

Tool designation (Designation) DC160-05-04.100A0-WJ30ET

Cutting edge diameter (D c) 4.1 mm

Cutting edge length (L c) 29 mm

Overall length (l 1) 74 mm

Projection length (l 2) 36 mm

Shank length (l 5) 36 mm

Shank diameter (d 1) 6 mm

DESCRIPTION & FEATURES

Solid carbide twist drills DC160 • Advance • Xtreme Evo • DIN 6537 L • 5xD • DIN 6535 HA shank • point angle 140° • Dc=4,1mm

Article number (J21):

DC160-05-04.100A0-WJ30ET

Standard number of properties layout (NSM):

DIN4000-81

Company code (J3):

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

4,1 mm

Protruding length (B3):

37,996 mm

Usable length (B4):

29 mm

Overall length (B5):

74 mm

Length chip flute (B6):

36 mm

Point length (B7):

0,746 mm

Functional length (B71):

73,254 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0060

Connection diameter machine side (C3):

6 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,018 kg

Point angle 1st step (E1):

140 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30ET

Body material code (H4):

Coating (H5):

TiSiAlCrN/AlTiN

Standard (J1):

DIN 6537 L

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Without Through Coolant
