Solid carbide twist drills DC260-03-06.800A0-WJ30ET

Solid carbide twist drills DC260-03-06.800A0-WJ30ET

€

110.25

EX VAT

€

135.61

INC VAT

Walter Titex

Solid carbide twist drills DC260-03-06.800A0-WJ30ET

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

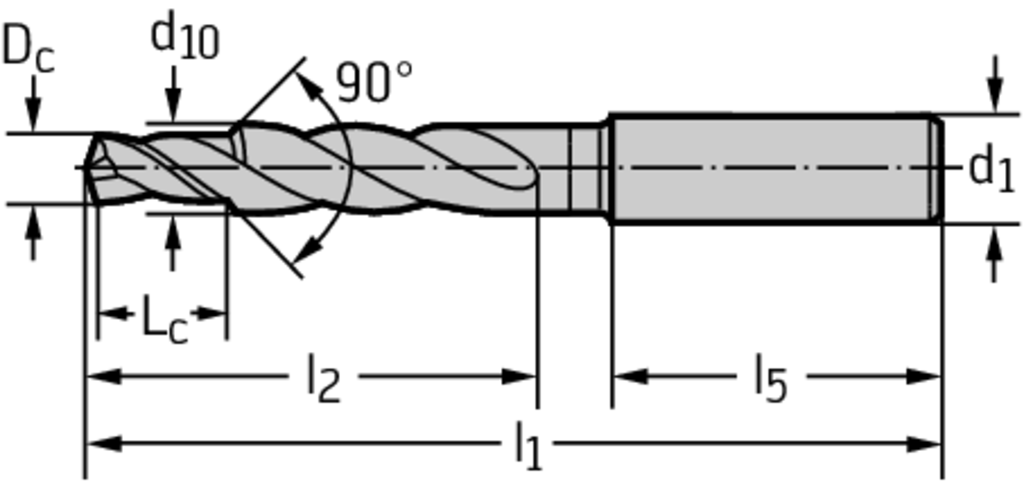

Tool designation (Designation) DC260-03-06.800A0-WJ30ET

For threads M 8

Cutting edge diameter (D c) 6.8 mm

Cutting edge diameter (d 10) 10 mm

Cutting edge length (L c) 21 mm

Overall length (l 1) 89 mm

Projection length (l 2) 47 mm

shank length (l 5) 40 mm

Connection diameter (d 1) 10 mm

Insert Shape DC

DESCRIPTION & FEATURES

Solid carbide twist drills DC260 • Advance • Xtreme Evo • 3xD • DIN 6535 HA shank • Dc=6,8mm

Article number (J21):

DC260-03-06.800A0-WJ30ET

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-81

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

6,8 mm

Cutting diameter last step minimum (A21):

10 mm

Step count (A3):

Step diameter length (B1):

21 mm

Protruding length (B3):

52,997 mm

Usable length (B4):

23,8 mm

Overall length (B5):

89 mm

Length chip flute (B6):

47 mm

Point length (B7):

1,237 mm

Functional length (B71):

87,763 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0100

Connection diameter machine side (C3):

10 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

40 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

30 °

Rotational speed maximum (D6):

100000 1/min

Weight of item (D7):

0,067 kg

Point angle 1st step (E1):

140 °

Step included angle last step (E2):

90 °

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

WJ30ET

Body material code (H4):

Coating (H5):

TiSiAlCrN/AlTiN

Standard (J1):

TP-NORM 65

Standard letter to the standard number (J11):

Data chip provision (J7):

Coolant Type:

Without Through Coolant
