Synchronous thread cutting adaptor AB035-C AB035-C6-ER40-154Synchronous thread cutting adaptor AB035-C AB035-C6-ER40-154
Synchronous thread cutting adaptor AB035-C AB035-C6-ER40-154 Synchronous thread cutting adaptor AB035-C AB035-C6-ER40-154

Synchronous thread cutting adaptor AB035-C AB035-C6-ER40-154

€
1,913.00
EX VAT
€
2,352.99
INC VAT
Walter
Synchronous thread cutting adaptor AB035-C AB035-C6-ER40-154
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

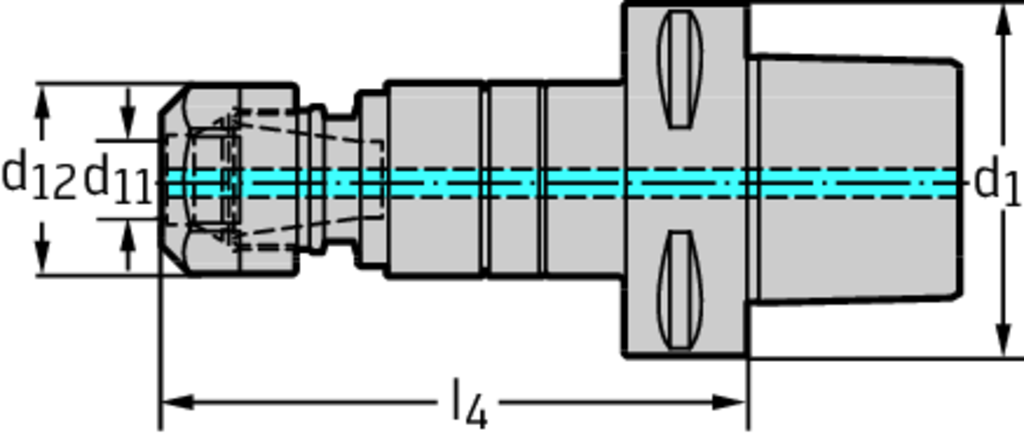

Tool designation (Designation) AB035-C6-ER40-154
Connection size code (d 1) C6
Connection diameter (d 11) M16-M30 mm
Body diameter (d 12) 62,7 mm
Maximum projection length (l 4) 153,5 mm
Collets ER40
weight of item 2,9 kg
Insert Shape AB
DESCRIPTION & FEATURES
Synchronous thread cutting adaptor AB035-C • metric • d1=C6/63mm • d11=41mm • for thread diameter size=M16-M30
Article number (J21):
AB035-C6-ER40-154
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter 2 (A2):
62 mm
Diameter lock nut (A5):
62,7 mm
Protruding length (B3):
153,5 mm
Overall length (B4):
191,5 mm
Adjustment nut height (B6):
131,5 mm
Functional length (B71):
136,7 mm
Connection code type machine side (C11):
CCS
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0630
Connection diameter machine side (C3):
63 mm
Shank length (C4):
38 mm
Connection code type workpiece side (C51):
SZD
Connection code form at workpiece side (C52):
02
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0400
Rotational speed maximum (D6):
8000 1/min
Weight of item (D7):
2,85 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
3
Coolant exit style code (H22):
1
Standard (J1):
ISO26623-1
Data chip provision (J7):
0
