Synchronous thread cutting adaptor AB035-H AB035-H63-ER25-128Synchronous thread cutting adaptor AB035-H AB035-H63-ER25-128
Synchronous thread cutting adaptor AB035-H AB035-H63-ER25-128 Synchronous thread cutting adaptor AB035-H AB035-H63-ER25-128

Synchronous thread cutting adaptor AB035-H AB035-H63-ER25-128

€
1,125.00
EX VAT
€
1,383.75
INC VAT
Walter
Synchronous thread cutting adaptor AB035-H AB035-H63-ER25-128
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

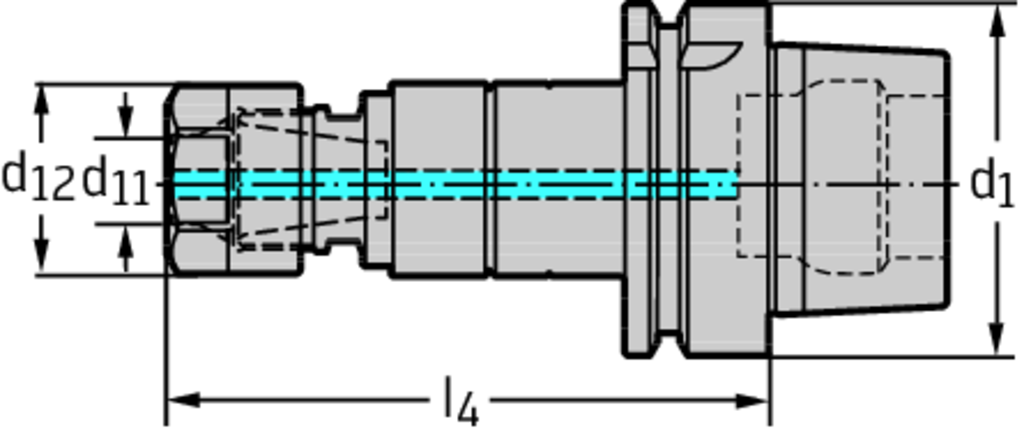

Tool designation (Designation) AB035-H63-ER25-128
Connection size code (d 1) HSK-A63
Connection diameter (d 11) M8-M20 mm
Body diameter (d 12) 42 mm
Maximum projection length (l 4) 127,5 mm
Collets ER25
weight of item 1,5 kg
Insert Shape AB
DESCRIPTION & FEATURES
Synchronous thread cutting adaptor AB035-H • metric • d1=63mm • d11=25,8mm • for thread diameter size=M8-M20
Article number (J21):
AB035-H63-ER25-128
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter 2 (A2):
44 mm
Flange diameter (A4):
63 mm
Diameter lock nut (A5):
42 mm
Length 2 (B2):
101,5 mm
Protruding length (B3):
127,5 mm
Overall length (B4):
159,4 mm
Adjustment nut height (B6):
25 mm
Functional length (B71):
114 mm
Connection code type machine side (C11):
HSK
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0630
Connection diameter machine side (C3):
63 mm
Shank length (C4):
32 mm
Connection code type workpiece side (C51):
SZD
Connection code form at workpiece side (C52):
02
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0250
Rotational speed maximum (D6):
8000 1/min
Weight of item (D7):
1,459 kg
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Standard (J1):
ISO12164-1
Standard letter to the standard number (J11):
A
Data chip provision (J7):
0
