Synchronous thread cutting adaptor AB035-H AB035-H100-ER40-164

Synchronous thread cutting adaptor AB035-H AB035-H100-ER40-164

€

2,096.00

EX VAT

€

2,578.08

INC VAT

Walter

Synchronous thread cutting adaptor AB035-H AB035-H100-ER40-164

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

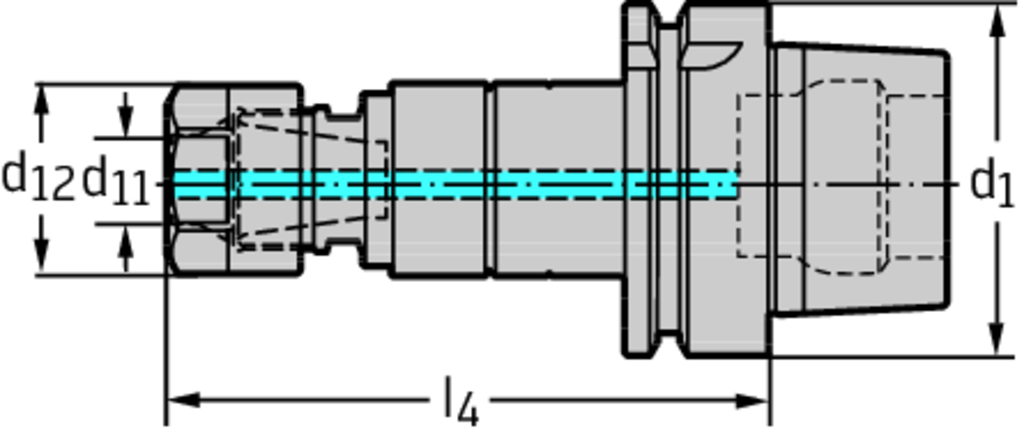

Tool designation (Designation) AB035-H100-ER40-164

Connection size code (d 1) HSK-A100

Connection diameter (d 11) M16-M30 mm

Body diameter (d 12) 62,7 mm

Maximum projection length (l 4) 163,4 mm

Collets ER40

weight of item 4,4 kg

Insert Shape AB

DESCRIPTION & FEATURES

Synchronous thread cutting adaptor AB035-H • metric • d1=100mm • d11=40,8mm • for thread diameter size=M16-M30

Article number (J21):

AB035-H100-ER40-164

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter 2 (A2):

62 mm

Flange diameter (A4):

100 mm

Diameter lock nut (A5):

62,7 mm

Length 2 (B2):

134,4 mm

Protruding length (B3):

163,4 mm

Overall length (B4):

213,3 mm

Adjustment nut height (B6):

30,5 mm

Functional length (B71):

146,6 mm

Connection code type machine side (C11):

HSK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

1000

Connection diameter machine side (C3):

100 mm

Shank length (C4):

50 mm

Connection code type workpiece side (C51):

SZD

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0400

Rotational speed maximum (D6):

8000 1/min

Weight of item (D7):

4,362 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO12164-1

Standard letter to the standard number (J11):

Data chip provision (J7):
