T-slot milling cutters M4575.019-W19-01-08

T-slot milling cutters M4575.019-W19-01-08

€

344.00

EX VAT

€

423.12

INC VAT

Walter

T-slot milling cutters M4575.019-W19-01-08

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

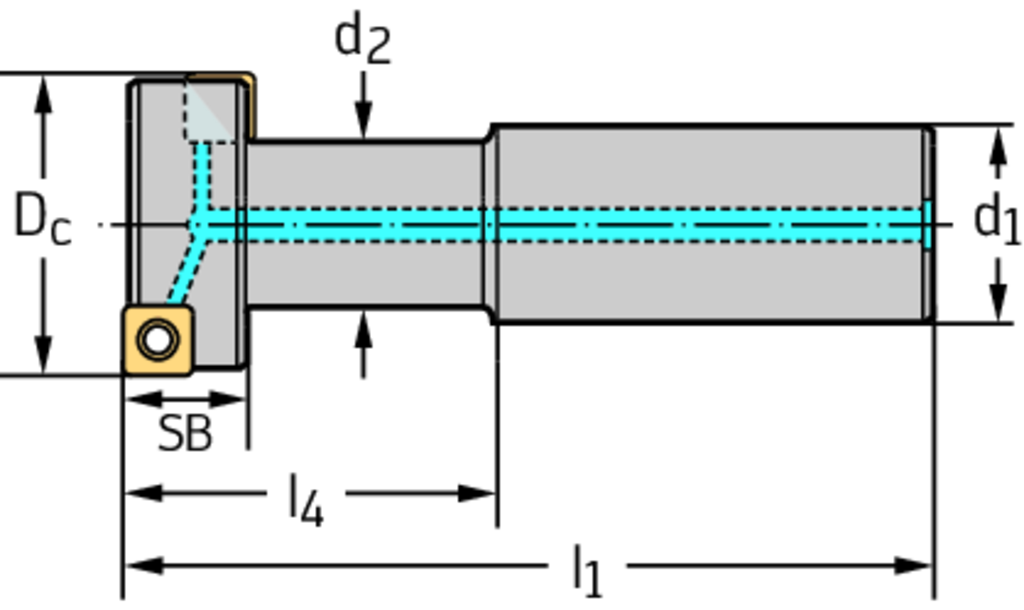

Tool designation (Designation) M4575.019-W19-01-08

Cutting edge diameter (D c) 0,778 inch

connection diameter (d 1) 0,75 inch

Neck diameter (D 2) 0,406 inch

Maximum projection length (l 4) 1,221 inch

overall length (l 1) 3,252 inch

Max. depth of cut (SB) 0,317 inch

Number of teeth (Z) 1

weight of item 0,15 lbs

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape M4

DESCRIPTION & FEATURES

T-slot milling cutters M4575 • DIN 1835 B shank • inch • κ=90° • Dc=19,75mm • SD .. 06T2 ..

Article number (J21):

M4575.019-W19-01-08

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

19,75 mm

Neck diameter (A5):

10,3 mm

Depth of cut maximum (B2):

8,05 mm

Protruding length (B3):

31 mm

Usable length (B4):

31 mm

Overall length (B5):

82,59 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0750

Connection diameter machine side (C3):

19,05 mm

ISO-tolerance class shank diameter (C31):

Mill tool type ISO (D11):

Rotational speed maximum (D6):

28000 1/min

Weight of item (D7):

0,148 kg

Adjustment property (D9):

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO3338-2

Standard letter to the standard number (J11):

Data chip provision (J7):
