Tangential rhombic P4406-1 WKP35S

€

11.17

EX VAT

€

13.74

INC VAT

Walter

Tangential rhombic P4406-1 WKP35S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

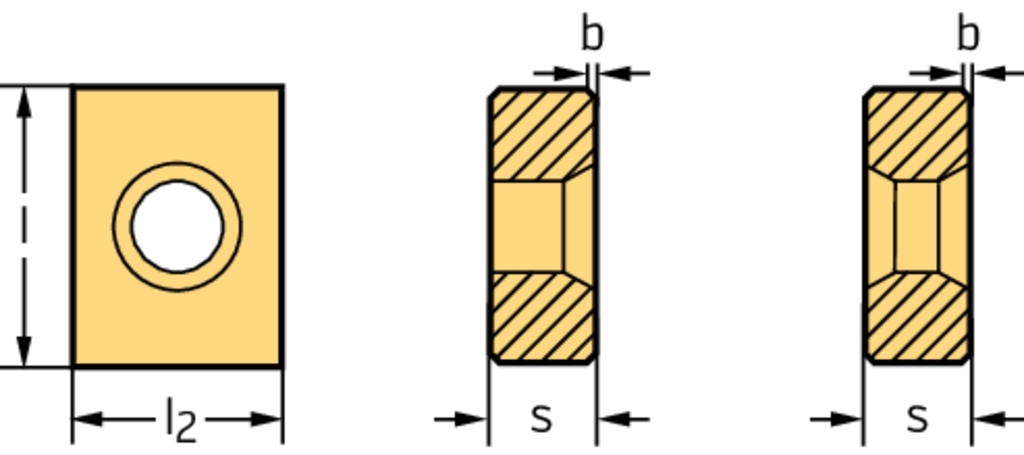

Tool designation (Designation) P4406-1 WKP35S

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 4

Indexable insert width (l 2) 9,52 mm

Cutting edge length (l) 12,7 mm

Insert thickness (s) 3,5 mm

Wiper cutting edge length (b) 0,5 mm

Insert Shape P4

DESCRIPTION & FEATURES

Tangential rhombic P4406 ...-A27 • clearance angle major=0° • WKP35S • Tigertec Silver

Article number (J21):

P4406-1 WKP35S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

12,7 mm

Insert width (B2):

9,52 mm

Insert thickness (C1):

3,5 mm

Corner chamfer width (D2):

0,5 mm

Weight of item (D75):

0,005 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A27

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

12,7 mm

Insert thickness total (G4):

3,5 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP35S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):
